1 Pcs Automatic Digital Pressure Controller 220v Water Pump Pressure Switch Controller with Automatic Protection Against Water Shortage

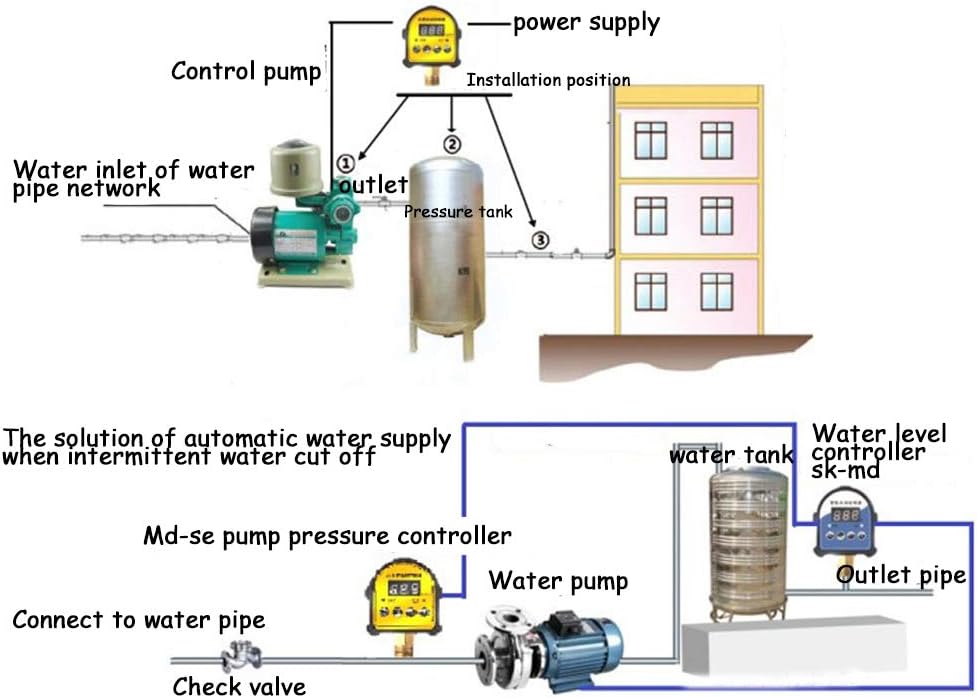

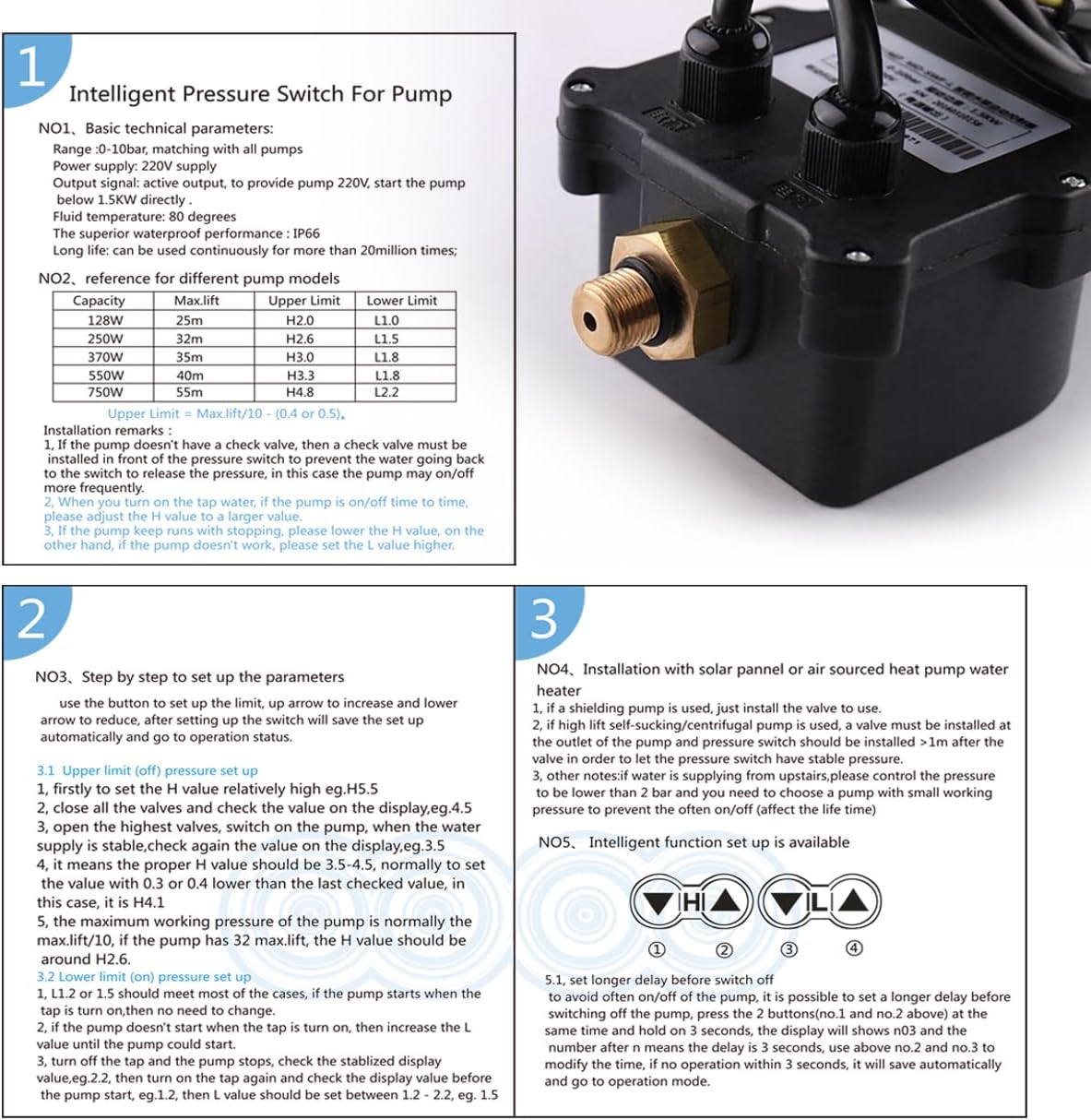

Use water shortage protection introduction: It is not controlled by the water shortage protection function for 3 minutes when it is turned on; that is, when it is turned on or reset, regardless of whether there is water or not, it will be used for 3 minutes, and then check after 3 minutes. If there is water shortage, the protection will start.Restart after 4 minutes of water shortage protection, try to pump water; restart after 8 minutes of water shortage; follow this cycle; factory set pressure: 1.5 start, 2.9 stop; (1.5-2.9KG/Bar). Installation: If the pump doesn't have a check valve, then a check valve must be installed in front of the pressure, in this case the pump may on/off ,or frequently. When you turn on the tap water, if the pump is on/off time to time, please adjust the H valve to a larger valve. If the pump keep runs with stopping, please lower the H valve, on the other hand, if the pump doesn't work, please set the L valve higher.

• Suitable for submersible pumps, pipeline pumps, centrifugal pumps, etc.
• Working Pressure Range: 0-10 Bar; Relay Capacity: 220V AC 10A; Output Signal: active output, to provide pump 220V, start the pump below 1.1KW directly; Fluid Temperature: 80 degrees; Waterproof: IP65; Socket Type: International three flat pins plug
• This pressure controller adopts a single-chip microcomputer processing chip for safe and intelligent control. Built-in pressure sensor, stable and accurate.Can automatically stop the pump to prevent water shortage, and automatically work when supplying water.
• Adopts button operation, the screen display pressure is adjustable, convenient and quick.
• Has automatic water shortage protection function to prevent the pump from burning out；Has the characteristics of shockproof, strong anti-interference and fast response s/peed.
