10GbE SFP+ Micro Firewall Appliance Mini PC, Intel Core i5 1240P 12C/16T 32GB DDR5 512GB PCIE SSD 4xIntel I226-V 2.5GbE 2*Intel 10Gb Network Card Firewall Home Server/Router 1xConsole
Product details
| Management number | 209092145 | Release Date | 2026/03/29 | List Price | $380.48 | Model Number | 209092145 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
MOGINSOK Micro Firewall Appliance NAS Mini PC with 10GbE SFP+

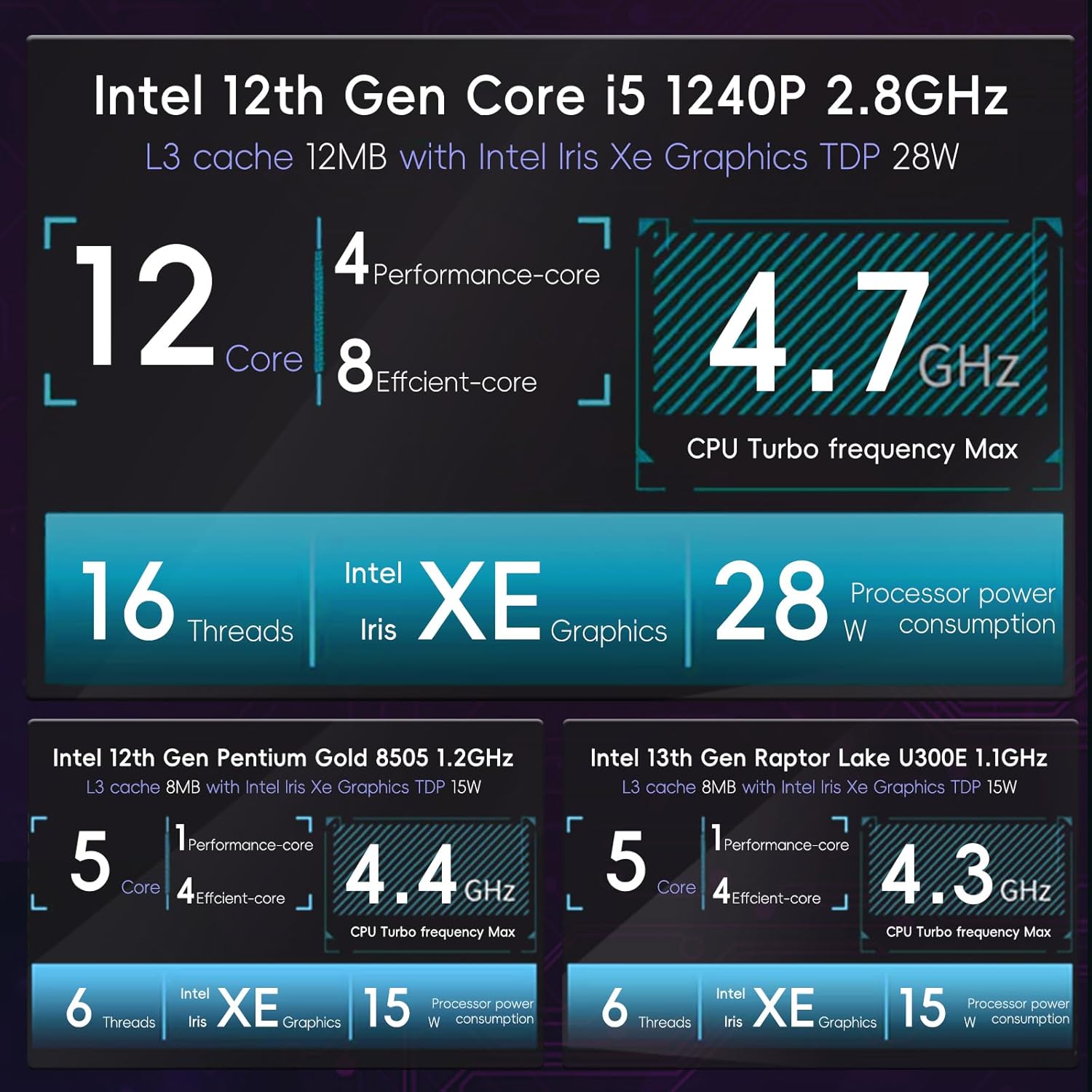

- 【Professional Firewall & Home SERVER】MOGINSOK Home Lab/Server Firewall Mini PC- MGNAS12, a fanless & silent professional firewall router pc equipped with a powerful Intel 12th Gen Core i5 1240P 2.8GHz up to 4.7GHz 12 Core 16 Threads L3 cache 12MB with Intel Iris Xe Graphics TDW 28W which maximizes the performance of the 2.5GbE port & 10gbe SFP+ port, bring you a smooth secured and encrypted network environment. With 2*slots SATA(external), you can use it to build as a HOME NAS SERVER/Router.

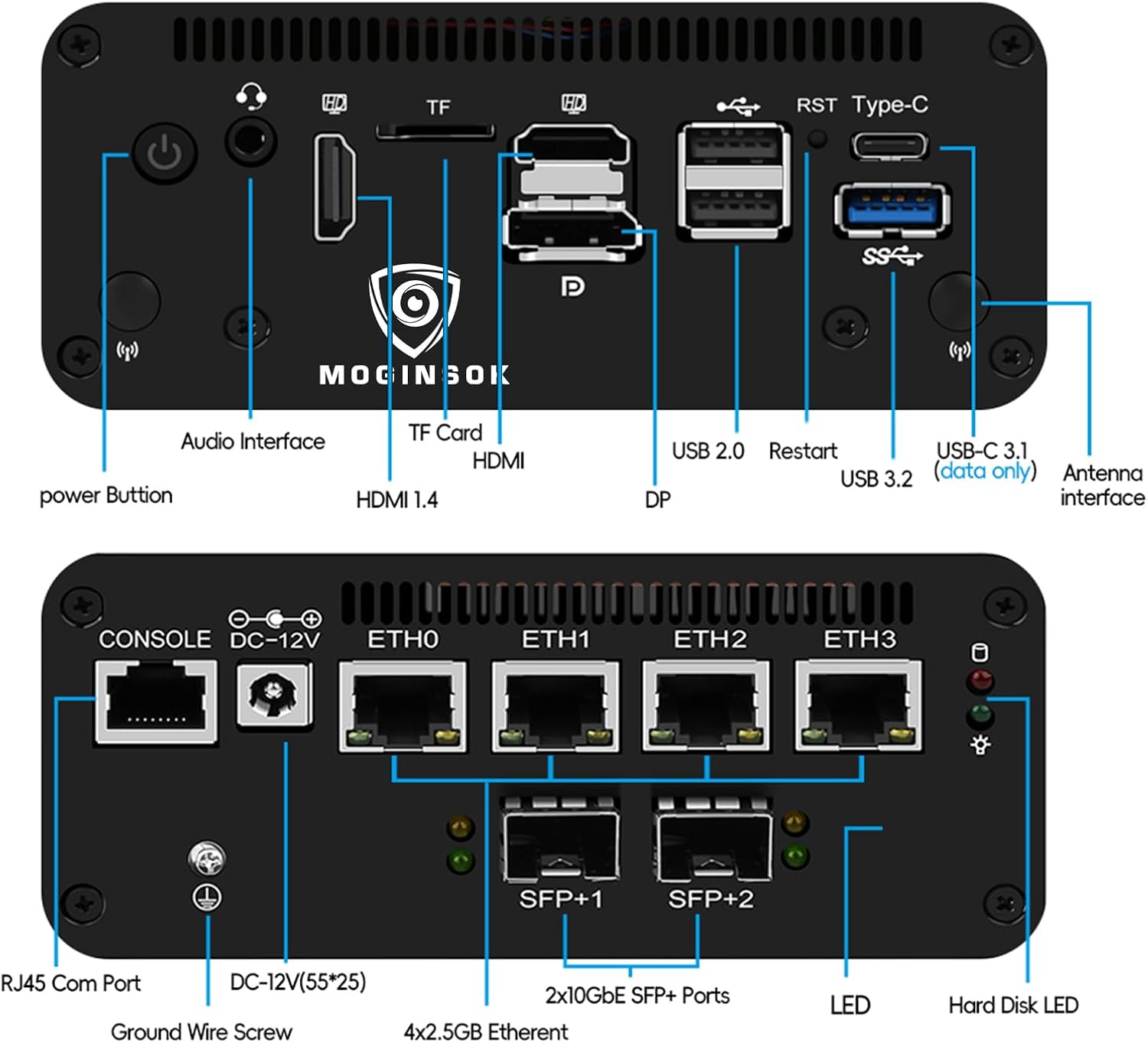

- 【Rich I/O to meet your needs】Firewall Appliance MGNAS12 With 2xHDMI 2.0 +DP 1.4 Support for Triple display up to 3x4K@60Hz, Dual DDR5 RAM slot support for up to 2x32GB SO-Dimm DDR5 Ram 4800MHz/5200MHz/5600MHz and an M.2 NVMe/PCIe 4.0 2280(compatiable with 22100 and PCIE 3.0) SSD slot and 2XSATA 3.0 SSD/HDD slots (no space to install internally), this device is perfect for your firewall、VM、Router、Home server、home router needs.
- 【2xSFP 10GbE & 4x2.5GbE】This Firewall Router equipped with 2xIntel 82599ES 10gbe network card(4xSignal) and 4*Intel i226 network card speed maximum up to 2.5GbE(need other device like router, cables etc. also support 2.5Gbe/10gbe)which can bring you more faster and professional network usage(some system not release drivers yet) suggest to install version of below systems: pfSense plus 23.0x, OPNsense 22.x, OpenWrt, ROS7, ESXI 8 , Proxmox, CentOS etc).
- 【Efficient cooling system design】The fresh air will enters from the two grille ports of the top cabin/panel to form an air duct, which cools the heat sink and supplies air to the environment through the air outlet on the aluminum side of the turbofan to dissipate heat efficiently which makes the whole system won't be overheating and keep the speed all the way.
- 【Quality With Warranty】If you have any questions or requirements(like OS installation/ drives/bios updates etc.) on MOGINSOK Firewall mini pc MGNAS12, feel free to contact us. We offered 12 Months warranty for it and WE'LL REPLY YOUR Questions within 12 hours(during Workdays).
| Brand | MOGINSOK |
|---|---|
| Color | Black |
| RAM Type | DDR5 RAM |
| Model Name | MGNAS12I5-32-512 |
| Resolution | 3840 x 2160 |
| Style Name | Intel Core i5 1240P |
| Aspect Ratio | 16:9 |
| Display Type | External |
| Manufacturer | MOGINSOK |
| Memory Speed | 4800 MHz |
| Video Output | HDMI, DisplayPort |
| BuiltIn Media | Keyboard |

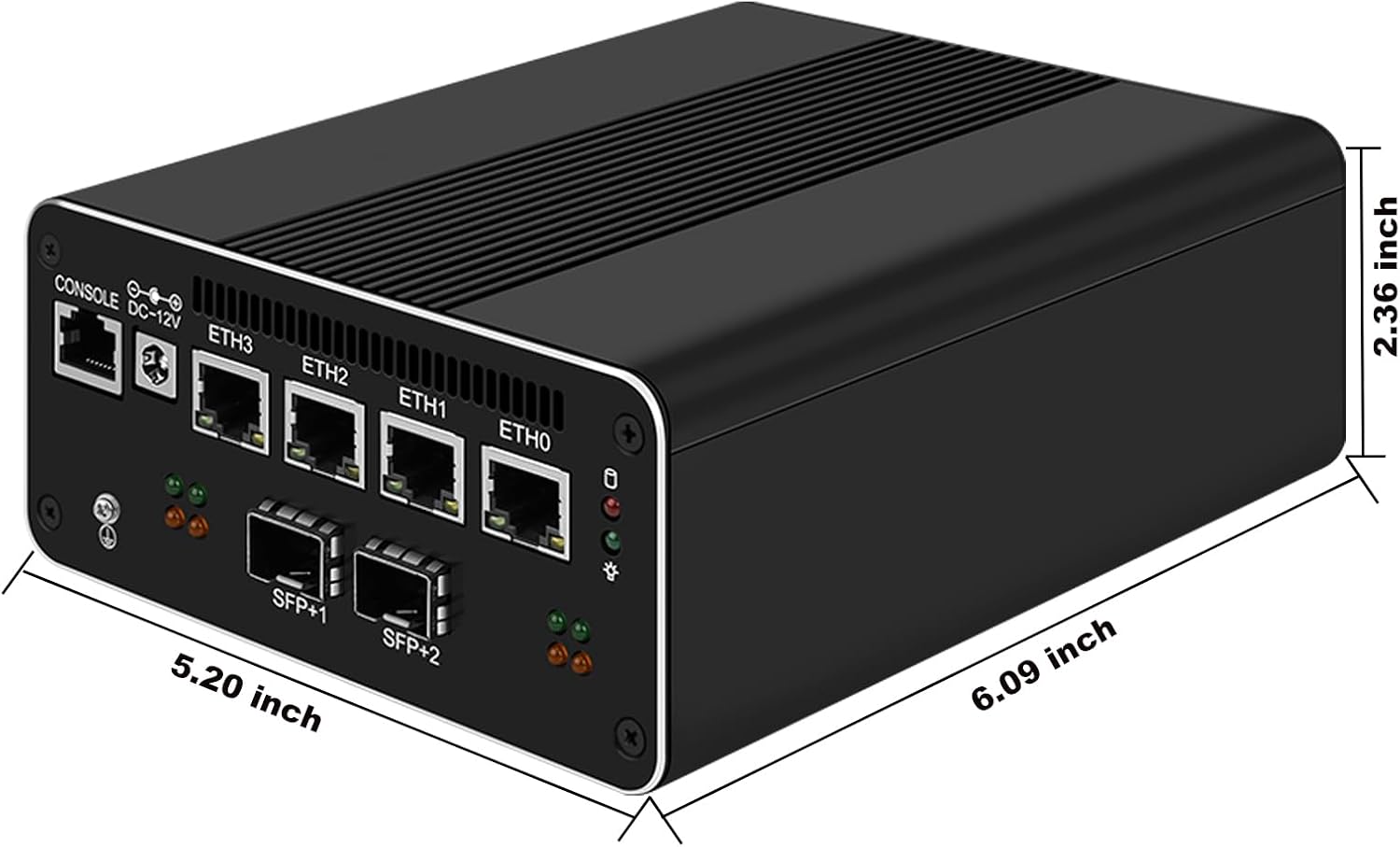

| Item Dimensions | 6.09 x 5.2 x 2.36 inches |
| Keyboard Layout | QWERTY |
| Processor Brand | Intel |
| Processor Count | 12 |
| Processor Speed | 2800 MHz |
| Video Processor | Intel |
| CPU Model Number | 1240P |
| Operating System | Linux |
| Processor Series | Intel Core i5 |
| Processor Socket | LGA 1200 |
| Native Resolution | 3840 x 2160 |
| Hardware Interface | Ethernet |
| Additional Features | Wps |
| Hard Disk Interface | Solid State |
| Graphics Coprocessor | Intel Iris Xe Graphics |
| Graphics Description | Integrated |
| HumanInterface Input | Microphone |
| Keyboard Description | Standard Wired Keyboard |
| RAM Memory Installed | 32 GB |
| Hard Disk Description | HDD, SSD |
| RAM Memory Technology | DDR5 |
| Video Output Interface | HDMI, DisplayPort |
| Connectivity Technology | Ethernet, HDMI |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 512 GB |
| Ram Memory Maximum Size | 32 GB |
| Specific Uses For Product | Business |
| Display Resolution Maximum | 3840 x 2160 pixels |
| Total Number of HDMI Ports | 2 |
| Number of Component Outputs | 2 |
| Personal Computer Design Type | Mini PC |
