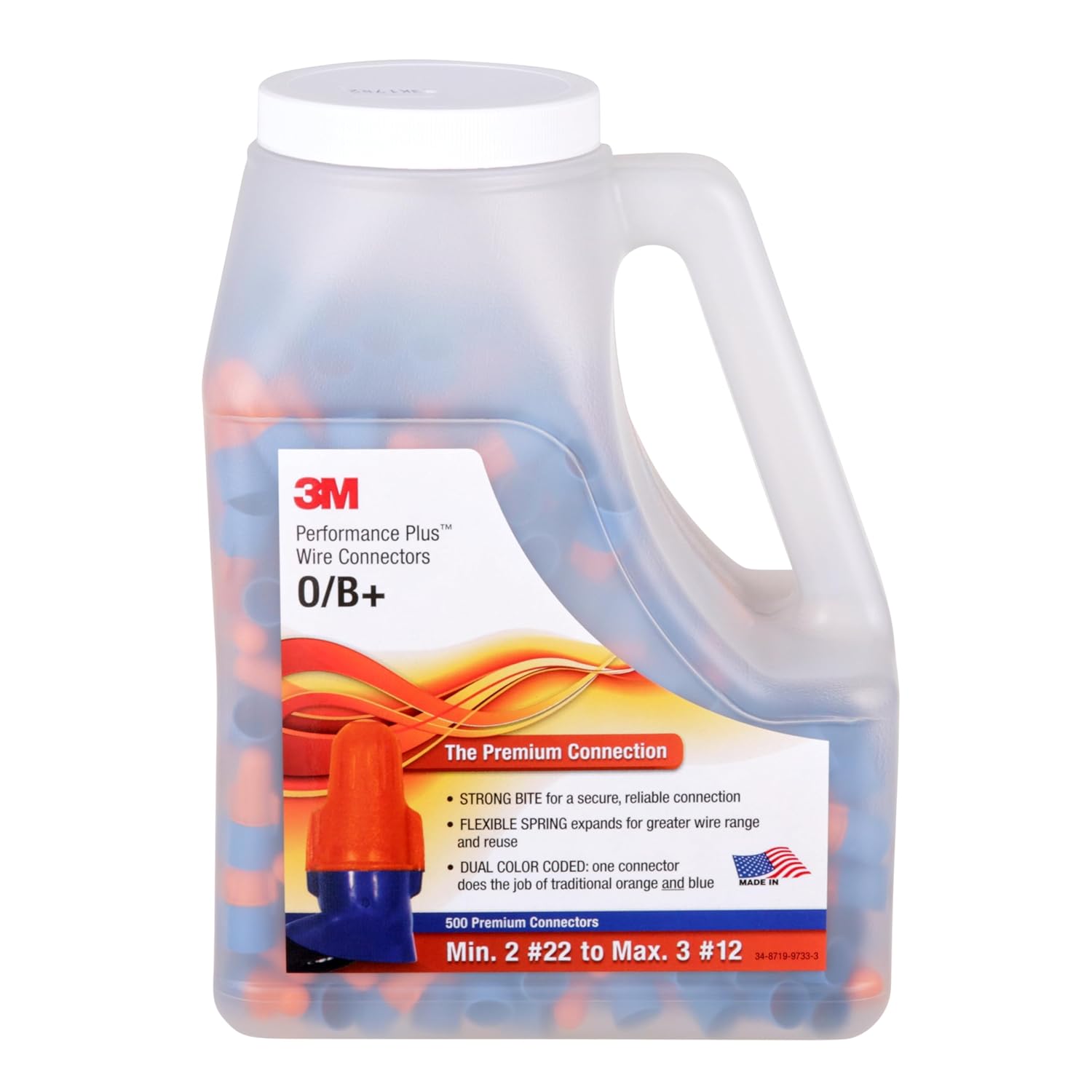

3M Performance Plus Wire Connector, O/B+JUG, Orange/Blue, Flexible Steel Spring Connectors, Twist On, CSA Certified, UL Listed, Jug of 500, 22-12 AWG
Product details
| Management number | 210253830 | Release Date | 2026/04/02 | List Price | $24.64 | Model Number | 210253830 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
You'll get a better connection with biting power of our 3M Performance Plus Wire Connector O/B+. It offers a quick-biting spring so you get a tight, reliable connection every time. This single O/B+ connector replaces your 2 traditional orange and blue connectors to give you more room. It's a great connector to use almost anywhere you need to connect and insulate copper wires.

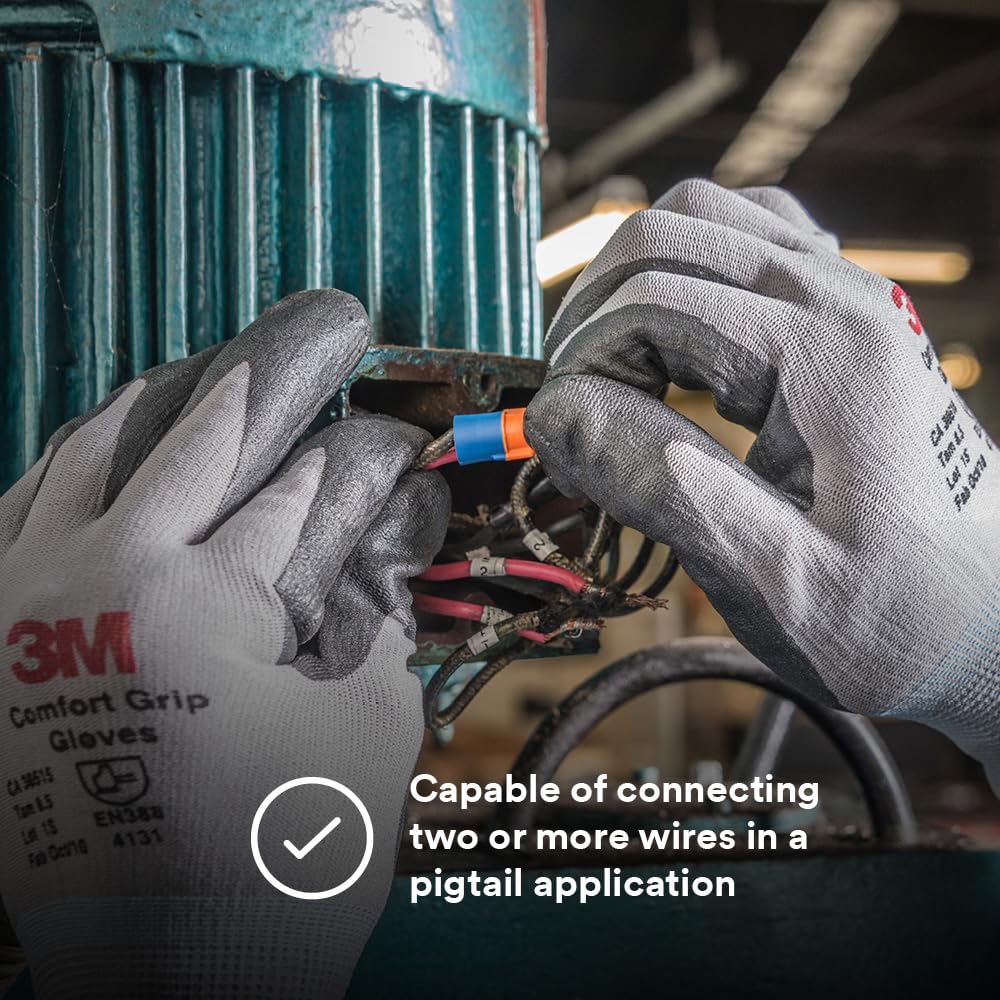

- Strong biting spring: For a secure, reliable and long-lasting connection in all your pigtail applications
- Uniquely flexible spring that has generous room for expansion into greater wire range and reuse
- Dual color coded orange/blue: One connector does the job of two traditional connectors in the majority of applications

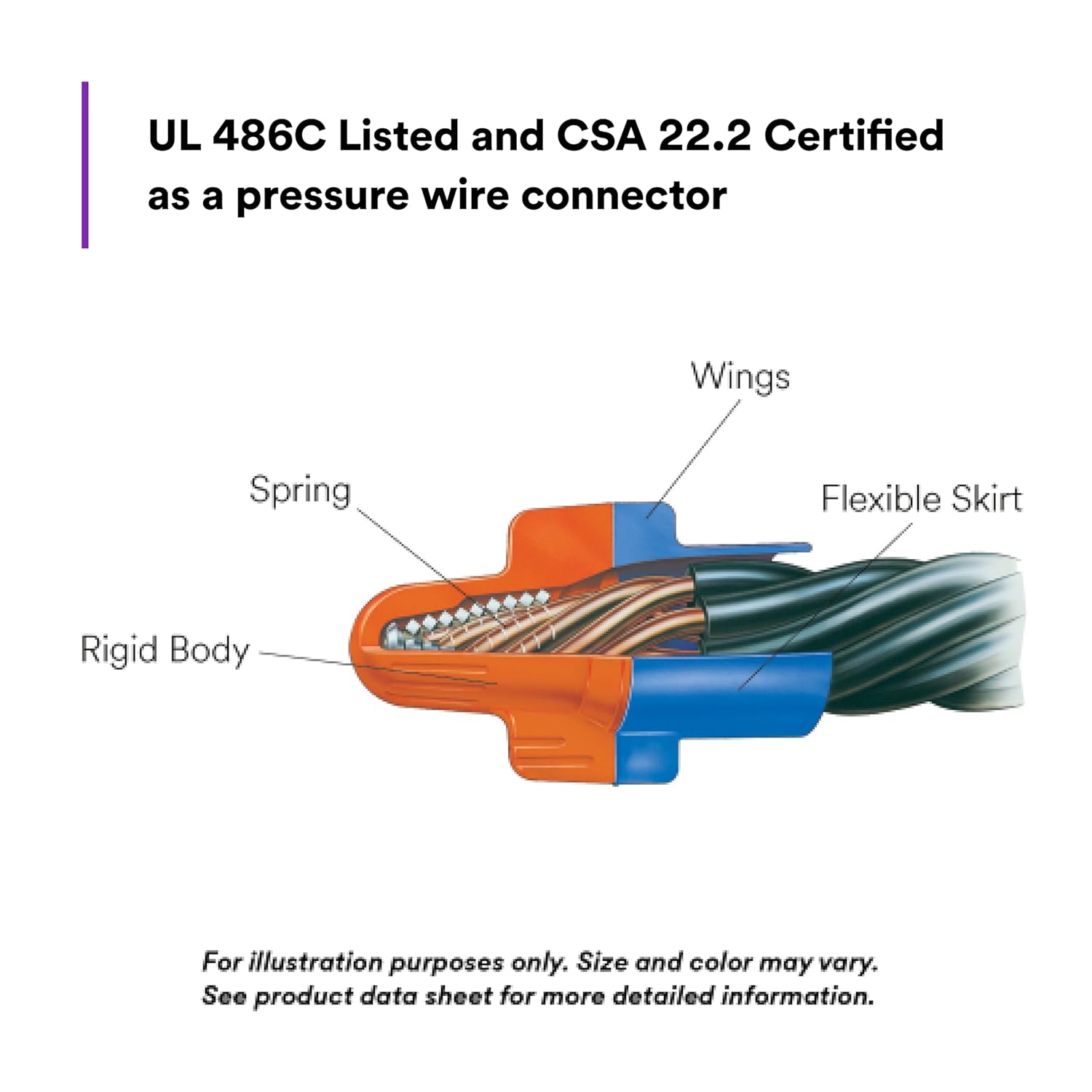

- UL Listed for 600 volts on with copper wire only and 1000 volts maximum in signs and lighting fixtures (luminaries)
- Wire range: 22-8 AWG for solid and/or stranded copper conductors
- Flexible skirt helps prevent copper exposure for enhanced safety
| UPC | 054007431534 |
|---|---|
| Color | Orange/Blue |
| Gauge | 8.0 |
| Model | 80611454531 |
| Terminal | Copper |
| Stud Size | #6-32 or #8-32 |
| Brand Name | 3M |
| Unit Count | 500.0 Count |
| Manufacturer | 3M |
| Material Type | Plastic |
| Connector Type | Spring |
| Item Type Name | 3M PERFORMANCE PLUS WIRE CONNECTOR O/B+JUG, 500 PER JUG |
| Maximum Voltage | 1000 Volts |
| Contact Material | Spring Steel |
| Temperature Rating | 221 F |
| Included Components | 500 Orange/Blue Connectors |
| Insulation Material Type | Polypropylene and thermoplastic elastomer |
| Item Dimensions L x W x H | 5.3"L x 3.7"W x 8"H |
| Global Trade Identification Number | 00054007431534 |
