4k Video Wall Controller 4X4 Matrix Switch Splitter 4 HDMI in 4 HDMI Out Switcher 3.5mm Output Audio Support Auto Switching IR Remote RS232 180° flip 12 Splicing Modes 2x2 1x2 1x3 1x4 2x1 3x1 4x1 etc
Product details
| Management number | 211330883 | Release Date | 2026/04/04 | List Price | $66.00 | Model Number | 211330883 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ▶【Supports 4 HDMI in 4 HDMI out】This 4K Auto Switching Video Wall Controller 4x4 Supports 4 HDMI inputs and 4 HDMI outputs. 4 HDMI input sources can be switched arbitrarily, and any signal can be split to 4 HDMI output display units, and then spliced into a complete big picture.
- ▶【8 splicing modes 】This 4K 4x4 Auto Switching Video Wall Controller Supports 8 splicing modes: (1)4 horizontal splicing modes: 1X1/1X2/1X3/1X4;. (2)3 vertical splicing modes: 2X1/3X1/4X1; (3)1 regular splicing mode: 2X2.
- ▶【Supports splitter Functions】This 4k 4X4 Matrix Switch splicing processor Supports splitter Function: 4 HDMI signal source can switch any signal distribution to 4 HDMI output monitors, switch “1 × 1” full-screen mode, 4-channel display the same screen, to achieve the effect of the distributor.
- ▶【Supports image 180 degree Flips】The 4K auto switching TV wall controller 4x4 Supports output image flip 180 °. in the remote control, corresponding to the output 1, output 2, output 3, output 4, 180 ° flip button, so easy to solve the problem of the monitor hanging upside down and affect the screen.(Note:180° flips is only available for more than 2 screens, not for 1x1 mode!)
- ▶【Supports Auto switching 】This 4K video wall controller 4x4 device Support Auto switching.4-channel HDMI input source, support automatic switching 4-channel HDMI input one kind of signal, save time and improve work efficiency!
- ▶【Dual audio outputs】This 4K 4x4 auto switching splicer Supports 3.5mm audio output and optical audio output, dual audio separation, independent output, bring you rich listening effect!

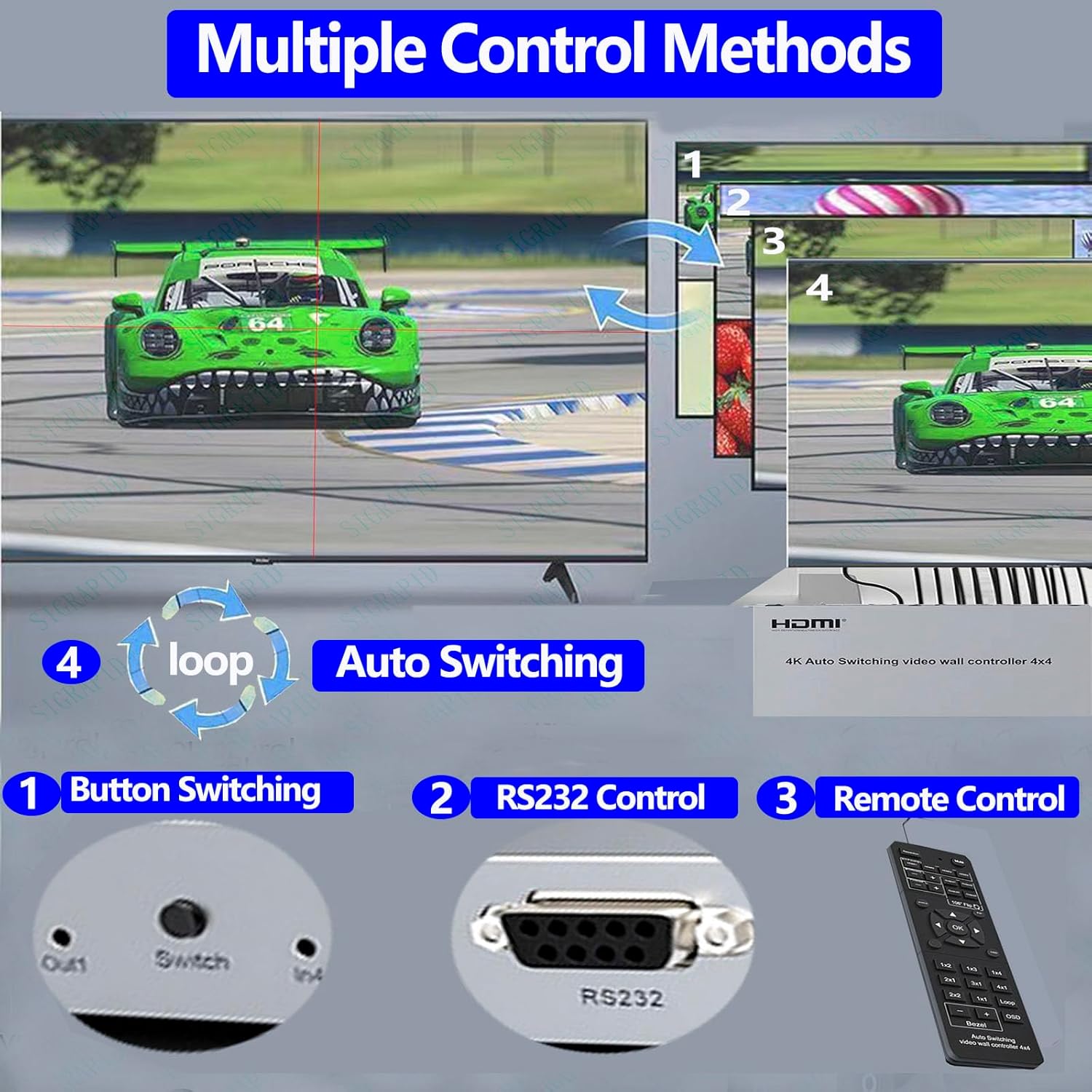

- ▶【4 types of control】The 4K 4X4 Audio Matrix Switch Splitter device Supports 4 types of control: Automatic switching, RS232 protocol, infrared remote control, panel key switching.
- ▶【4K HD】This HDMI Auto switching video wall controller 4x4 Supports 4K30Hz HD resolution input, each display resolution stabilized output 1080P, the overall picture presents 4K HD image quality, bringing a delicate experience!
- ▶【Border Adjustment】This HDMI Auto switching video wall controller 4x4 With the remote control bezel blending adjustment button, you can adjust the blending of the bezel edges to make the overall picture seam smaller and more coordinated!
- ▶【Brightness Adjustment/Contrast Adjustment】This 4 HDMI Input 4 HDMI Output video wall controller brightness and contrast of the screen can be adjusted to suit different environments.
| UPC | 768561855506 |
|---|---|
| Brand | SIGRAPID |
| Color | 4K Auto switching video wall controller 4x4 |
| Cable Type | HDMI |
| Item Weight | 0.7 Kilograms |
| Manufacturer | SIGRAPID |
| Number of Ports | 8 |
| Compatible Devices | Laptops, monitors, televisions, game consoles, projectors, computer mainframes |
| Warranty Description | 1 |
| Item Dimensions D x W x H | 10.87"D x 5.63"W x 1.02"H |
| Connector Type Used on Cable | HDMI |
