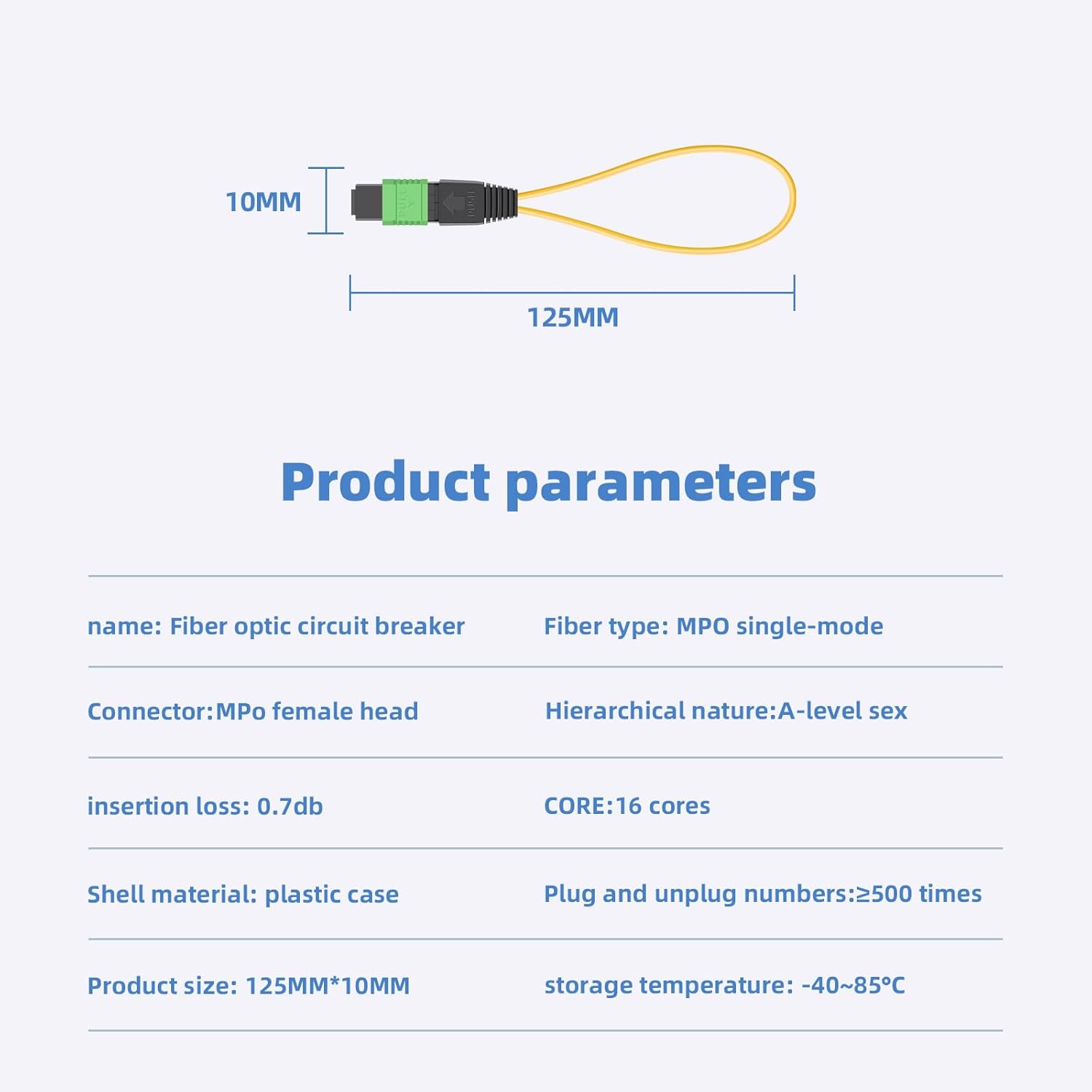

5-Pack MPO/APC Fiber Optic Loopback Tester Cable,Singlemode - 50/125μm MPO/16 Core Female, Fiber Optic Loopback Plug Adapter, for Testing Applications
Product details
| Management number | 211730960 | Release Date | 2026/04/04 | List Price | $36.38 | Model Number | 211730960 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

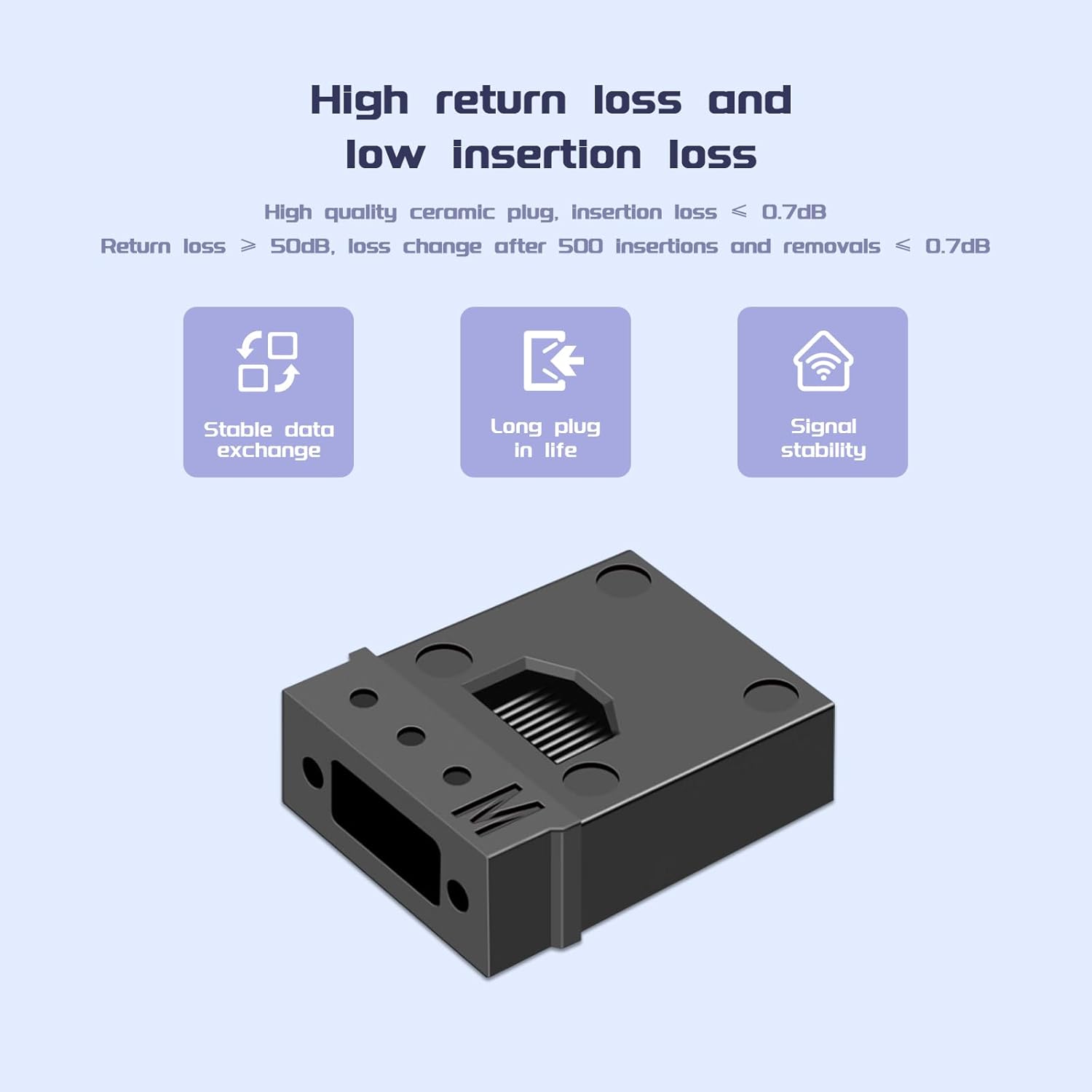

- "Insertion Loss", MPO/APC Single-mode 16-core Optical Fiber Loopback,The typical insertion loss is less than 1.0 dB per channel. This parameter defines the amount of signal attenuation as light passes through the Loopback.
- "Return Loss", MPO/APC 16-core Loopback,Return loss is typically greater than 50 dB. This measures the amount of reflected signal, with higher values representing superior performance by reducing reflections back to the source.
- "Wavelength Range", These MPO Single-mode Loopbacks are optimized for single-mode fiber applications, typically supporting wavelengths from 1260 nm to 1650 nm, including the common 1310 nm and 1550 nm wavelengths used in telecommunications.
- "Polarization Dependent Loss (PDL)", PDL is typically less than 0.1 dB. This parameter measures the difference in insertion loss based on the polarization state of the light, and lower values indicate more consistent performance across different polarization states.
- "MPO Connector Type", The Loopback uses MPO connectors, which provide a high-density solution for multi-fiber connections, suitable for compact installations such as data centers or telecommunications systems.
| Color | Singlemode MPO16 Core |
|---|---|
| Model | BZ-LHSMMPO16-5PCS |
| Brand Name | Buacoz |
| Cable Type | Fiber Optic |
| Model Name | BZ-LHSMMPO16-5PCS |
| Manufacturer | Buacoz |
| Connector Type | Mpo/Apc 16 Core |
| Number of Pins | 32 |
| Connector Gender | Male-to-Male |
| Compatible Devices | Data Centers, Fiber Optic Networks |
| Indoor Outdoor Usage | Indoor |
| Recommended Uses For Product | Testing in Data Centers and Fiber Optic Networks |
| Other Special Features of the Product | Fiber Loopback Tester |
