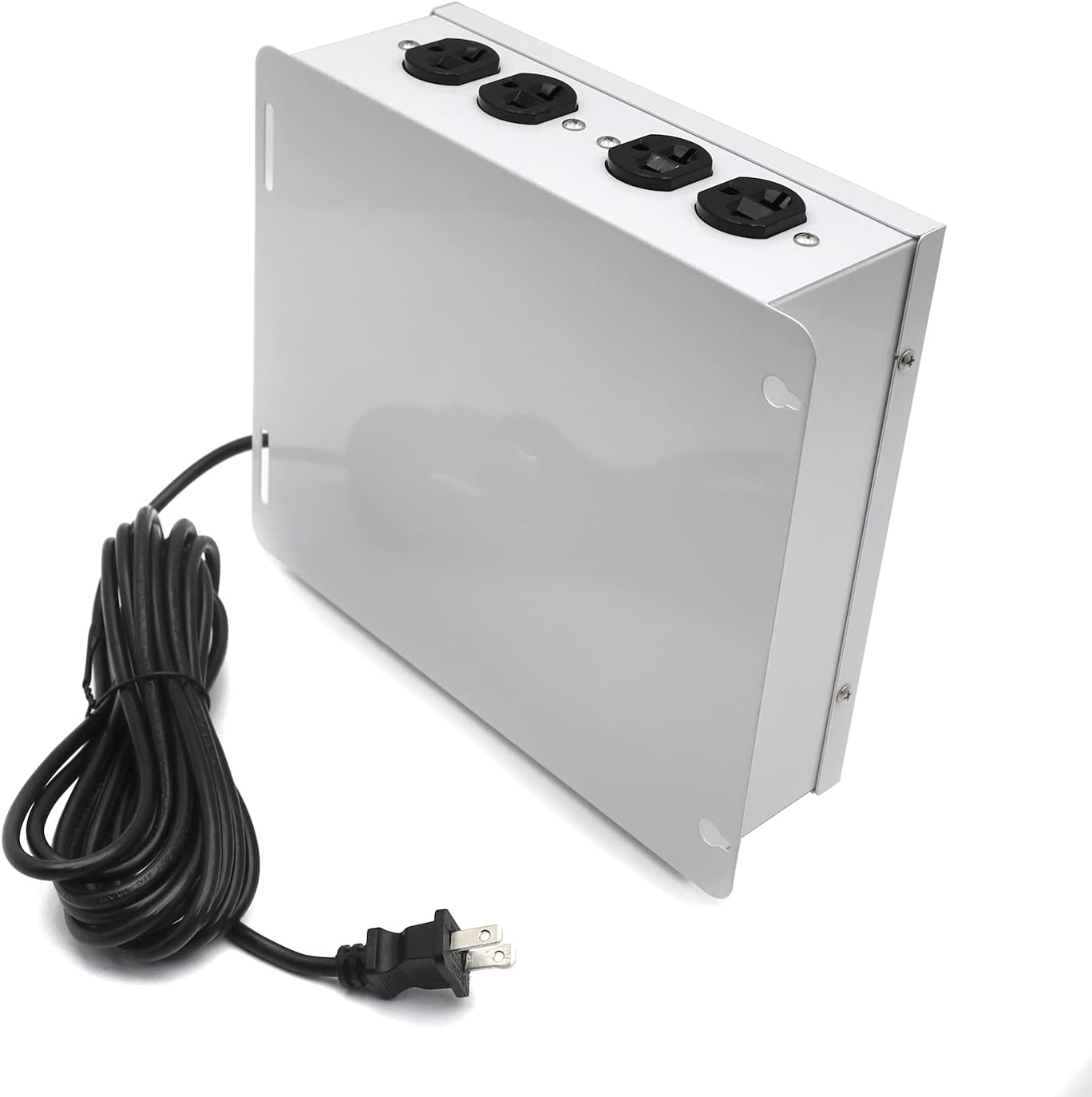

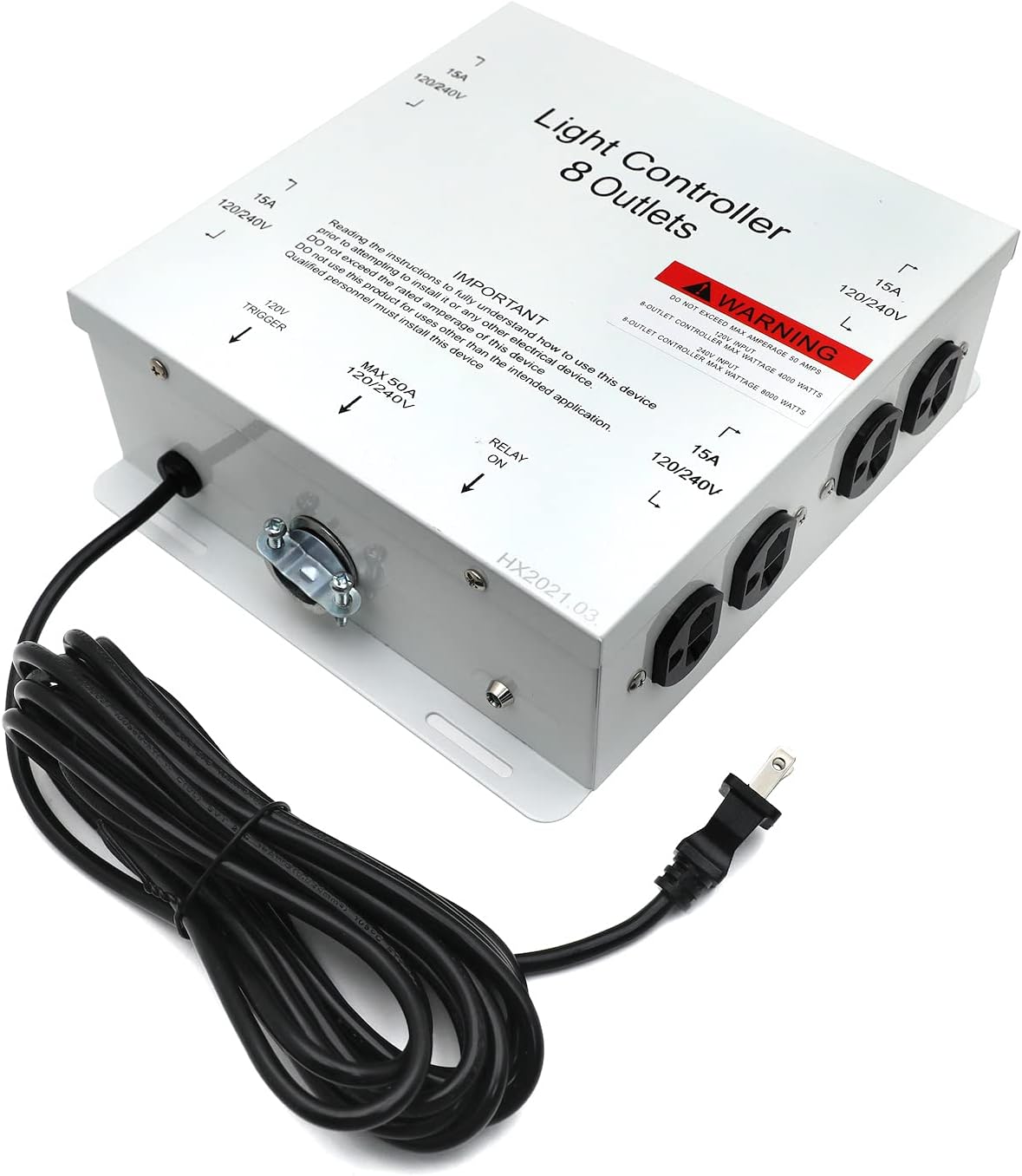

8-Light Controller, Lighting Relay Ballast Grow Light Controller 8000W 240V, 4000W 120V with Trigger Cords, HID Hydroponic Master Ballast Controller

SKULL PIVOT 4000W / 8000W 8-Light HID Master Lighting Relay ControllerFeatures :Controls up to four or eight 1000W high-intensity discharge (HID) ballasts, including both metal halide (MH) and high-pressure sodium (HPS) lighting systems.Integrated 120V trigger cable facilitates any timed lighting sequence when connected to a standard 24-hour timing deviceGreen LED indicator illuminates when light controller. is activated and ON via the trigger cable function.Composed of high-quality components for reliable, long-term performance.Wall-mountable.SPECIFICATIONS:Main Power Voltage: 120V OR 240VReceptacle Type: 8 Universal Outlets120V Max Wattage: 4000W total240V Max Wattage: 8000W total/1000W per OutletMax Amperage: 50ATrigger Cable Voltage: 120VOperating Temperature Range: 32-110°FOperating Humidity Range: 0-99% RH NoncondensingMinimum Relay Operations: 100,000 @ Full LoadNotice：240V main power requires ballasts wired for 240V (most common application).120V main power requires ballasts wired for 120V.Installation Notice：DO NOT connect ballasts to the Light Controller until AFTER the main power has been properly installed.Verify trigger cable is disconnected from the external timer or controller.Connect ballast power cables to the receptacles on the Light Controller.Connect the trigger cable to the external timer or controller.

• Brand: SKULL PIVOT
• 【MAX LIGHTING WATTAGE:】8 light controller runs up to 8000 watts(1000 watts per outlet) of grow lights at the same time.
• 【DUAL TRIGGER CORDS:】Giving you the option to run two different lighting schedules, allow flexible customize, just like having two lighting controllers in one. Activate grow lights via external 24-hour timers, to fit your planting needs.
• 【EIGHT OUTLETS:】Allow to run eight lights at 120/240 volts at the same time, and take the guesswork out of multiple light timing setups. Perfect for the plants growing system.
• 【DURABLE & RELIABLE:】Featuring two premium quality definite purpose industrial power relays. V0 grade flame retardant enclosure, durable construction built to withstand high impacts, protects from chemical spray, dust, rust & moisture resistance and provide years of trouble-free performance.
