98 Series 15A Manual Reset Thermal Overload Protector Switch 3A-50A Straight Pin Screw Pin Mini Circuit Breaker(8A)
Product details
| Management number | 210099329 | Release Date | 2026/04/02 | List Price | $12.73 | Model Number | 210099329 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

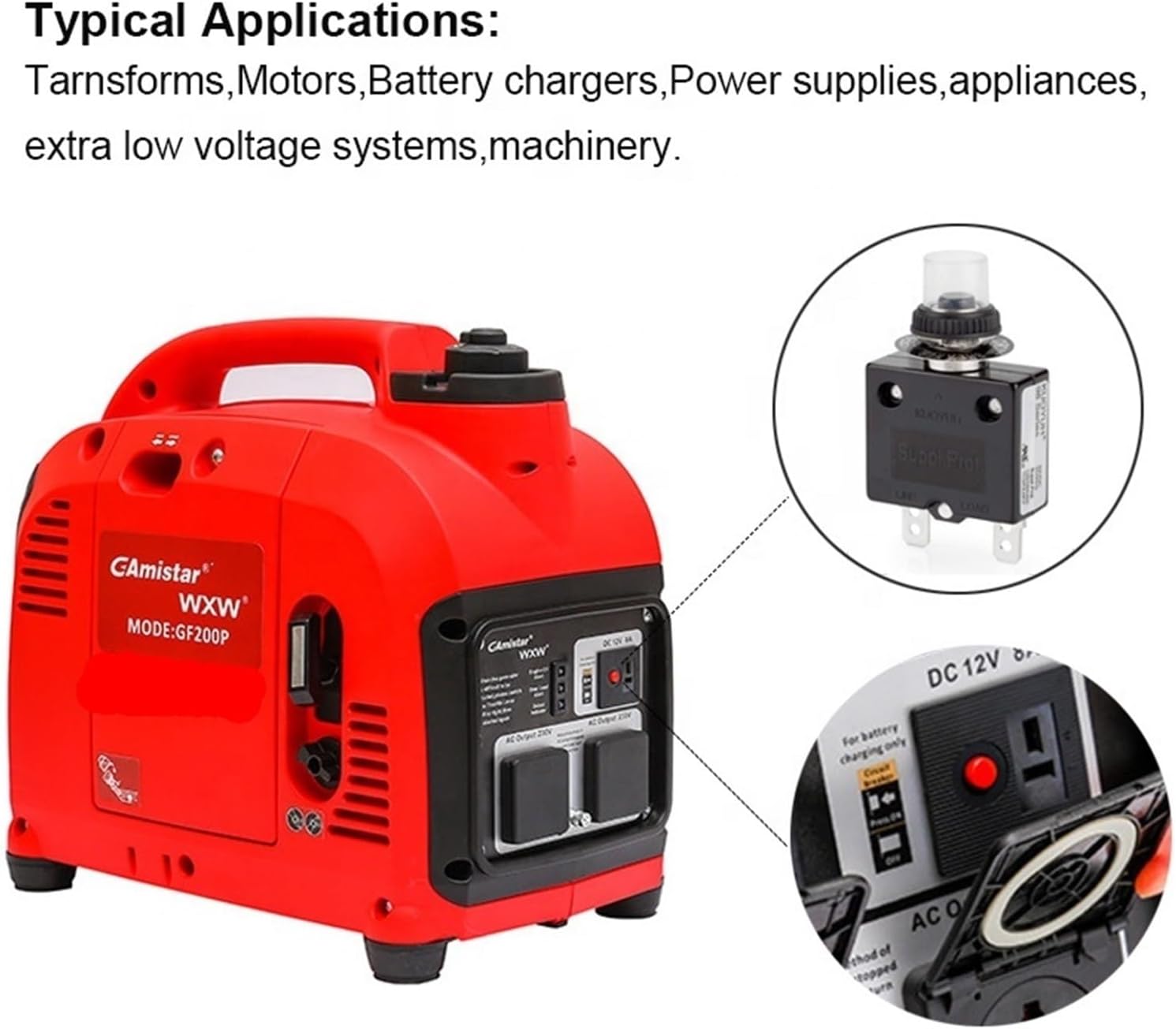

Circuit BreakersProduct DescriptionCurrent Rating Range3~50AInput Voltage rating125/250VAC,32VDCWithstand voltage strength<;0.5mACertificationCUL UL TUV CCC VDE SAAInsulation resistance500VDC 1Min >100MRated short-circuit capacity125VAC/1000A;250VAC/1000ARated breaking capacity6 times rated currentResetManual Push ResetTripping characteristicsThe test environment temperature:25°c±3°c200% rated of current :5-30 seconds trip150% rated of current : Trip within 1 hour100% rated of current : Hold ;No tripManual Press to Reset 4A Mini Overload Circuit BreakerApproval Approval & File No Rated current Rated voltageCUL UL E155159 350A 125250VAC; 50VDCTUV SUD B15 09 58611 007 3-30A 125/250VAC; 32VDCCCC 201101030752058 3-30A 125/250VAC.VDE 40036160 3-16A 125/250VACCSA 102199 3-30A 125VACApprovalTypical applicationsTarnsforms, Motors, Battery chargers, Power suppliesappliances, extra low voltage systems, machinery98 Series 15A Manual Reset Thermal Overload Protector Switch 3A-50A Straight Pin screw Pin Mini Circuit BreakerType : Moulded CaseCertification : ULModel Number : 98-15ARated Voltage : 32VDCProduct name : Circuit BreakerRated current : 3A-50ARated voltage : 125VAC/250VAC/32VDCMaterial : BakeliteApplication : Overload ProtectionReset Type : Manual push resetRated short circuit capacity : 125VAC/1000A,250VAC/1000ARated breaking capacity : 6T imes Rated CurrrentProduct type : Overload Thermal ProtectorMOQ : 1PCSType : MiniPoles Number : 2Rated Frequency : 50/60hz
- Circuit Breakers
- 98 Series 15A Manual Reset Thermal Overload Protector Switch 3A-50A Straight Pin screw Pin Mini Circuit Breaker
| Model | KGETHBZO |
|---|---|
| Brand Name | KGETHBZO |
| Part Number | KGETHBZO |
| Manufacturer | KGETHBZO |
