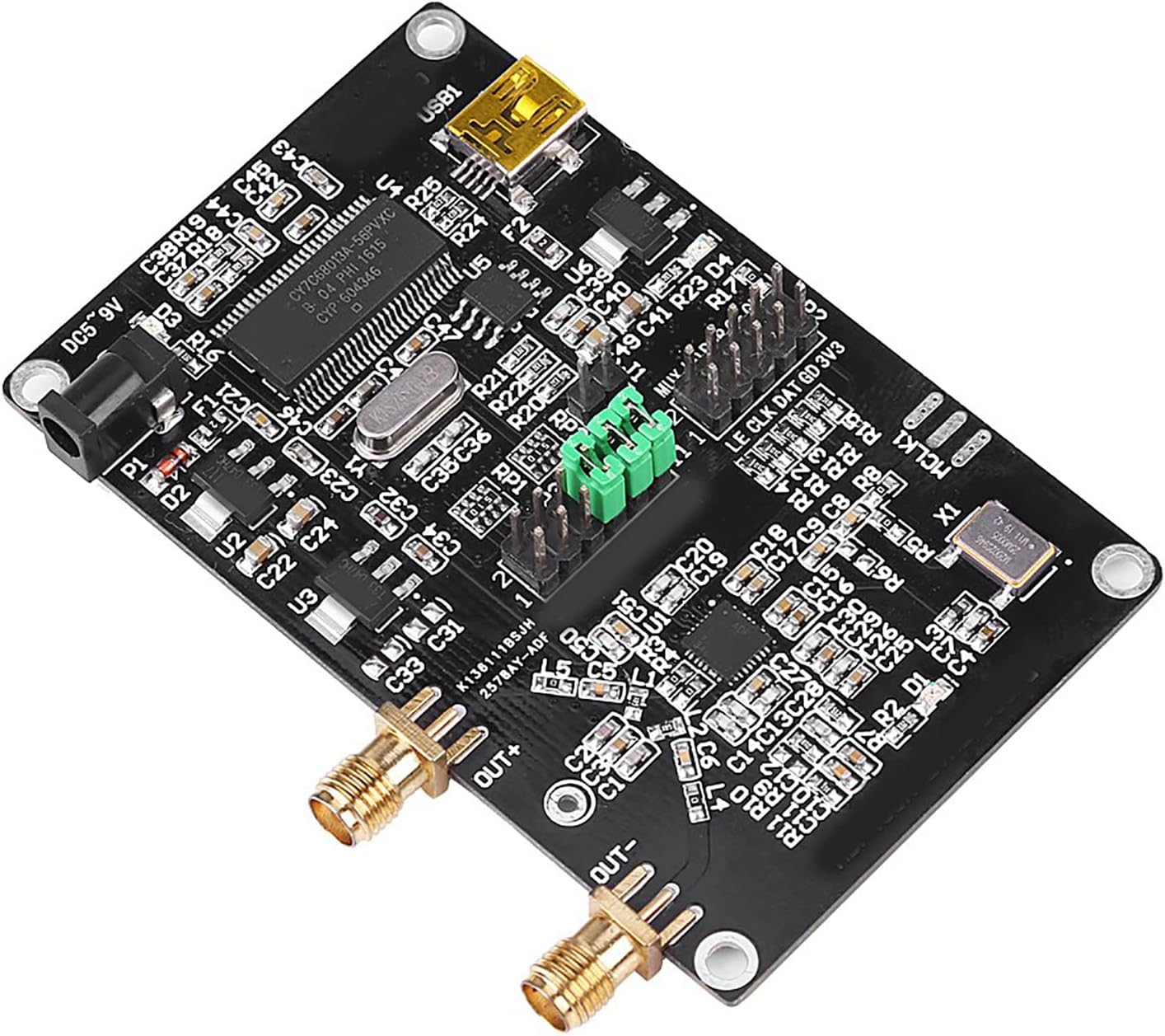

ADF4351 + Development Board with Micro 35M-4.4GHz RF Source Frequency Synthesizer ADF4351 Controller, ADF4351/ADF5355 Microcontroller 35M-4.4G Compatible to W5100 Shield Network

Features:This ADF4351 signal source development board has well designed circuit board layout.It can be controlled by the upper computer official software.All control pins are leaded out for convenient operation.Default + -50ppm 25M active crystal oscillator.Circuit diagram in PDF formatandSTM32 test program are provided.Three-wire Spilead to control pin and state locking pin, allowing all functions including point frequency sweep and frequency hopping, stepping to 1K, low frequency step can be 0.1K, according to crystal frequency.The control interface of the single chip micro controller for easy controlling independently.It can also control ADF5355.Specifications:Output Frequency Range: ADF4351: 35M-4.4GPower Supply: DC002 Interface DC4-9V(typical 5V)Output Signal: 2.2-4.4G fundamental wave (sine wave), 35M-2.2G fundamental division (squarewave)Signal Output Connector: SMA femaleWeight: 36gFile Download:http://pan.baidu.com/s/1dE84sGp (password: nlwq)Package Included:1 x signal Generator1 x sma holder1 x USB cable

• Well-Designed Circuit Board Layout: This ADF4351 signal source development board features a thoughtfully designed circuit board layout. The layout ensures optimal performance and reliable operation, allowing you to explore various RF signal applications with confidence.
• Convenient Control Options: This development board can be easily controlled using the official software on an upper computer. All control pins are leaded out, providing convenient access for smooth operation. This user-friendly design simplifies the process of configuring and adjusting the settings to meet your specific needs.
• Reliable Crystal Oscillator: The development board includes a default + -50ppm 25M active crystal oscillator. This high-precision oscillator ensures accurate and stable frequency synthesis. The included circuit diagram in PDF format and the STM32 test program further enhance its usability and provide additional support for customization.
• Flexible Control and Functionality: This development board offers versatile control options. It features a three-wire SPI interface that allows you to control the pin and state locking, enabling functions like point frequency sweep and frequency hopping. With stepping options down to 1K and even as low as 0.1K for low-frequency steps, you can fine-tune your RF signal with precision.
• Convenient Single-Chip Microcontroller Control: The development board is equipped with a control interface specifically designed for a single-chip microcontroller. Additionally, the ADF4351 development board can also control the ADF5355, providing flexibility for different applications and requirements.
