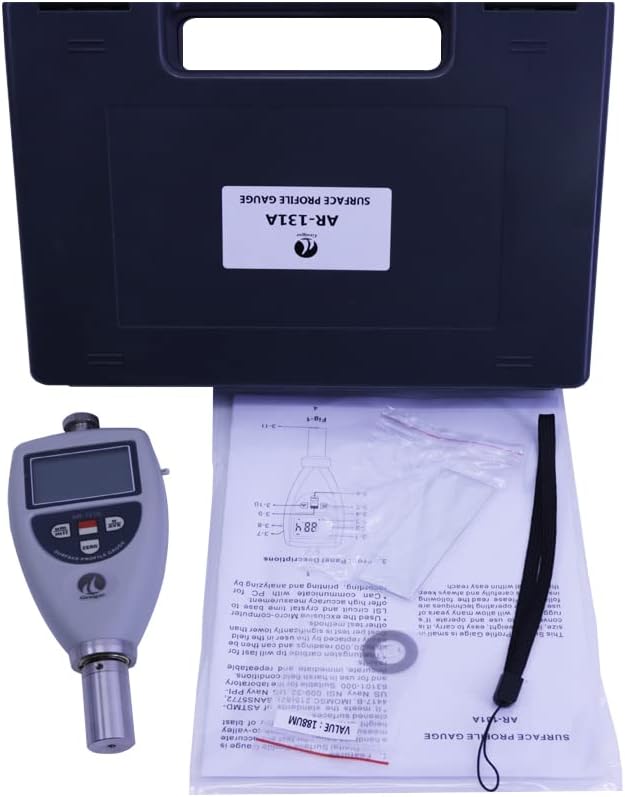

AR-131A Surface Roughness Tester Surface Profile Gauge Meter Range 0~750um
Product details
| Management number | 211142849 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211142849 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product ParametersResolution:1 µm (0.1 mils)Range:0 µm ~ 750µm/(0mils to 29.5mils)Measurement Speed:>30 (readings per minute)Accuracy:±5% or ±5 µm ( whichever is the greater)Operating Temperature:0~ 50°COperating Humidity:<80%RHSize :176x63x25 mmPower Supply:2x1.5vAAA Um-4 BatteryWeight:310 g (Not including batteries) Standard AccessoriesMain UnitZero Calibration BlockCarrying CaseOperation Manual
- The Surface Profile Gauge used in Shot blasting industry, the printing industry, Spraying Anti Corrosion Industry, According to the selected measurement conditions are calculated from the corresponding parameters, in the liquid crystal display clearly shows all the measured parameters.
- Integrated design, small volume, light weight, simple structure, easy to use, Intuitive readings and automatic shutdown function.
- Public and imperial units converted, with the average computing power.
- With a mean value calculation, undervoltage alarm indicator function.
- Direct measurement of the surface peak-trough height.
| Size | Medium |
|---|---|
| Color | Gray |
| Material | Plastic |
| Item Weight | 2.2 pounds |
| Part Number | AR-131A |
| Manufacturer | Graigar |
| Power Source | Battery Powered |
| Item model number | AR-131A |
| Batteries Included | No |
| Batteries Required | Yes |
| Product Dimensions | 6.93 x 2.48 x 0.98 inches |
| Included Components | Main Unit |
