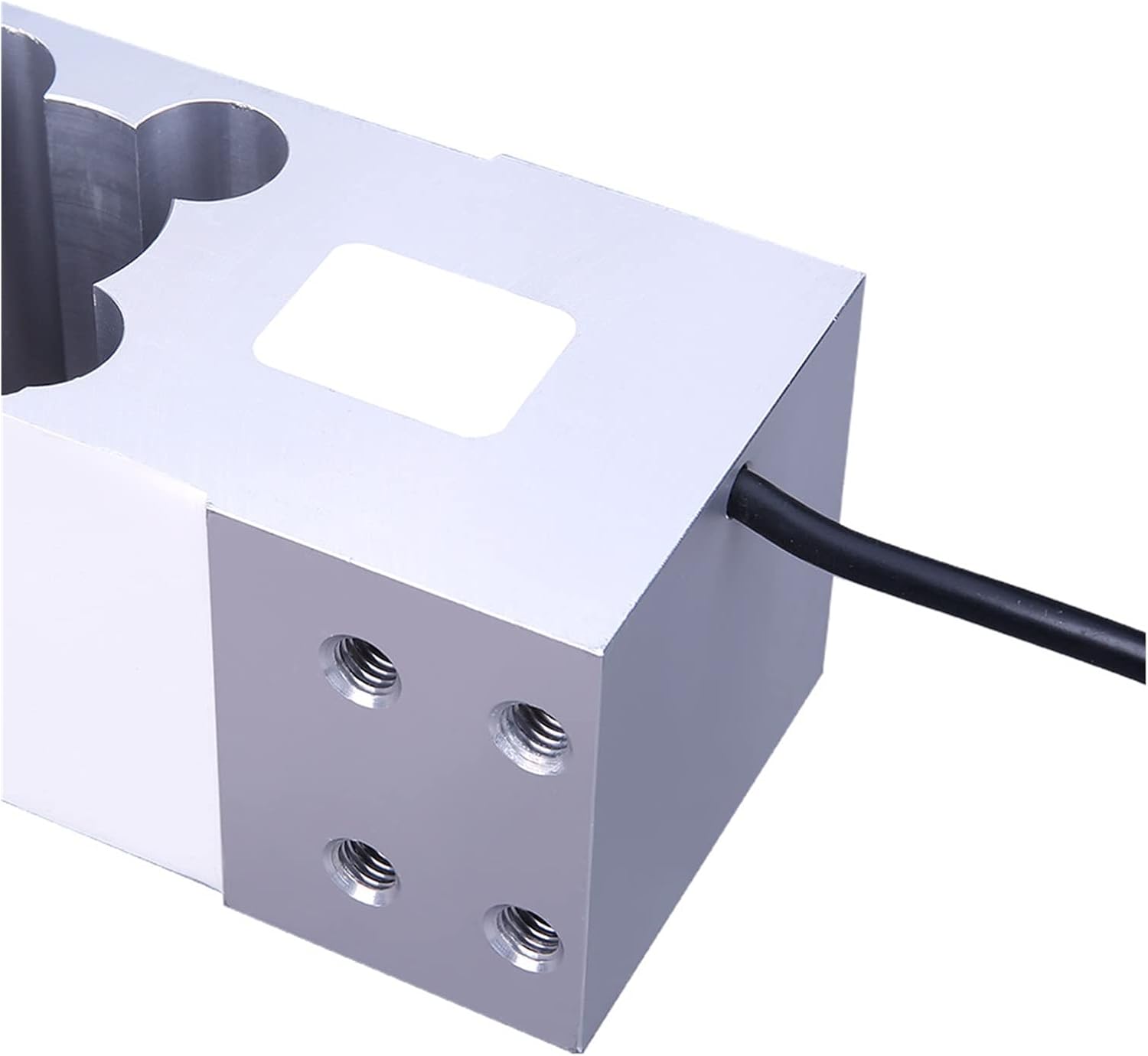

Digital Load Cell Weight Sensor Shear Beam Weighing Load Cell 100/200/500/750kg for Electronic Belt Conveyor Scale (Color : 100KG Size : 1)
Product details
| Management number | 210901138 | Release Date | 2026/04/04 | List Price | $128.83 | Model Number | 210901138 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Rated output 2.0±0.004mv/v Input resistance 400±10 Accuracy Class C2 Output resistance 350±3 Non-linearity 0.02%F.S Safe overload 150%F.S Hysteresis 0.03%F.S Ultimate overload 300%F.S Creep in 30 minutes 0.02%F.S Excitation voltage 10V AC/DC Temperature effect span 0.015%F.S/10 Max excitation voltage 15V AC/DC Temperature effect zero 0.02%F.S/10 Insulation Resistance 500M Compensated temperature -10~+40 Environmental protection IP67 Operating temperature -30~+65 Material Aluminium Alloy
- Shear Beam Weighing Load Cell 100/200/500/750kg For Electronic Belt Conveyor Scale
- Features:Shear beam weighing load cell, made of aluminum alloy, colorless anodizing, adhesive seal, protective grade lp65.Suitable for small scale electronic scales such as electronic computing scales,measurement scale,platform scale.
- X5:100kg 200kg 500kg 750kg
- Capacity:100-750kg
- Zero Balance;±1%F.S
| Manufacturer | GAORUIFENG |
|---|
