Emuca - X91 Straight Hinge kit with Soft Close and Supplement, Bolting Supplement, 105º Opening, Titanium, Steel, 20 pcs.

Door hinges designed to equip your kitchen, cabinets, home, bathroom and office furniture with high quality at the best price. They stand out for their damper piston that provides a smooth closing of the door. They are available in straight version with a door opening of 105º. For installation they need a pre-drill diameter 35 mm for the bowl. And its attachment to the board is done by means of screws included. They are also distinguished by their easy installation thanks to the automatic clip mounting system of the hinge to the supplement. In addition, both have eccentric screw for quick and convenient adjustment. The attachment of the shim is done with Euro screw that requires a pre-drill diameter 5 x 12 mm used in boards with zip drills. Discover the full range of EMUCA products in our Amazon Store: www.amazon.es/EMUCA

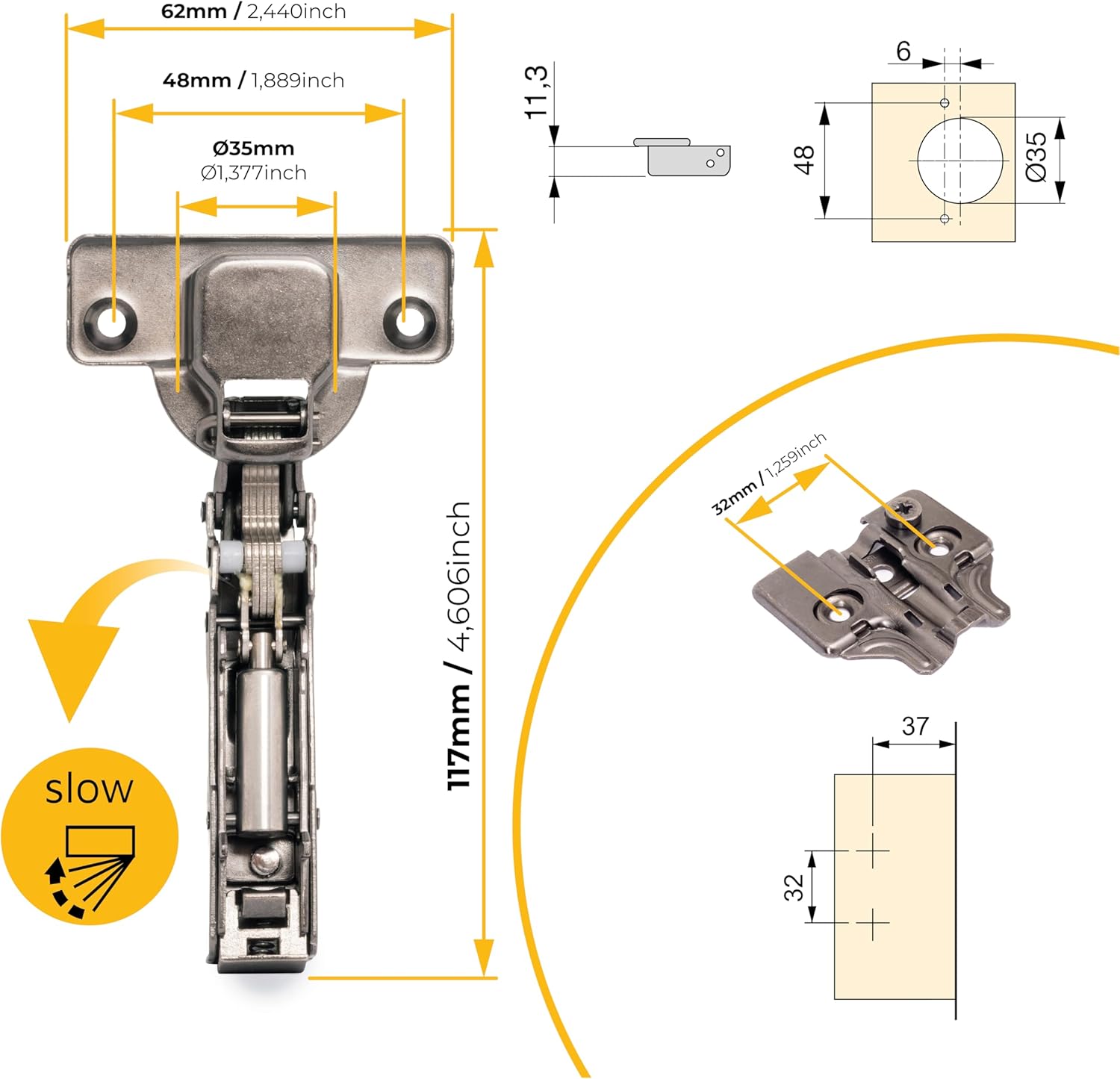

• X91 Straight Hinge. Screw-on fixing. Diameter of 35 mm. 105° opening.
• It has a damper piston for the soft closing of the door. Automatic clip mounting system from hinge to shim. Door thickness 14 to 24 mm.
• Three-dimensional adjustable. Drilling range of bowl D = 3 ~ 7 mm. Depth adjustment via eccentric. Spring in both closing and opening.
• Supplement X91. Screw-on fixing. Height 0 mm.
• With eccentric adjustment. Includes screws required for assembly. Made from titanium finished steel.
