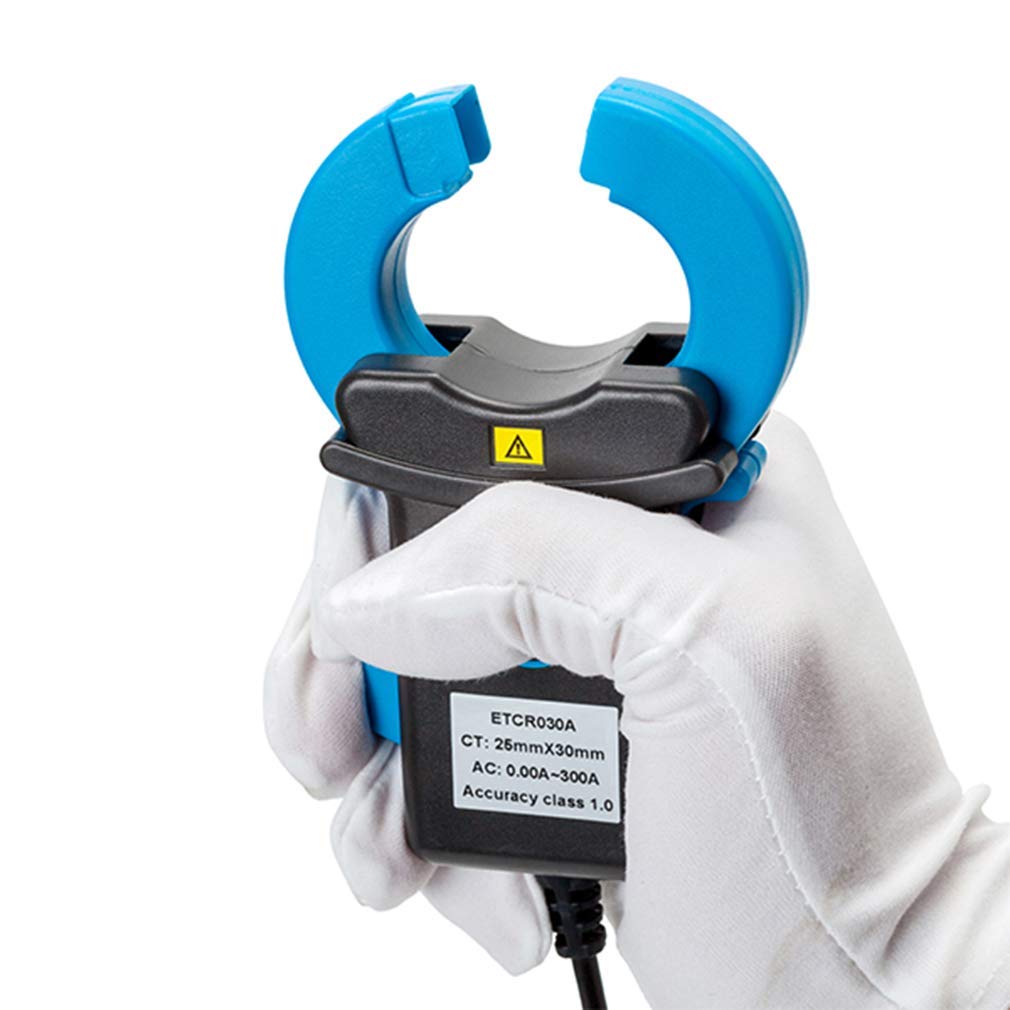

ETCR030A Clamp Leakage Current Sensor Probe AC Current Meter Tester 0.00A～300A Measurement Range 0.01A Resolution with 3.5mm Audio Plug Output Interface

Main Function: 1：Detecting of AC current, phase, power energy, power, power factor, harmonic. Apply to oscilloscope, harmonic analyzer, Power fault analyzer and so on industrial control device 2：Range ：0.00A～300A 3: Turn Ratio/Output Voltage ：3000:1 /0～3V(30Ω) 4: Resolution : 0.01A 5: Accuracy Class :1.0 6: Safety class: CATⅢ600V 7: CT structure :clamp 8: Clamp Size :25mm×30mm Technical Specifications Function:Detecting of AC current, phase, power energy, power, power factor, harmonic. Apply to oscilloscope, harmonic analyzer, Power fault analyzer and so on industrial control device Range:0.00A～300A Resolution:0.01A Accuracy Class:1.0 Phase Error: ≤2° Turn Ratio/Output Voltage: 3000:1 / 0～3V(30Ω) Reference Load:≤30Ω / ≥100KΩ Clamp Size: 25mm×30mm Weight:180g Output Interface:Shielded wire 2m, wire terminal interface:BNC plug(Can be customized) Frequency:45Hz～100KHz Insulating Strength:AC 3700V/rms ( between the core and coil) Safety Clas:CATⅢ600V Output Method:Current sensing output Working Temperature:-15℃～50℃

• ❤❤(1)ETCR030A clamp current sensor is suitable for high-precision detection of AC current, high-order harmonic current, phase, electric energy, power, power factor and so on.
• ❤❤(2)Using new CT technology, portable, clamp design, no need to disconnect the tested line, non-contact measurement, safe and fast, can connect phase detection analyzer, industrial control device, data recorder, oscilloscope, harmonic analyzer, power quality analyzer, high-precision digital multimeter and so on.
• ❤❤(3)ETCR030A is widely used in electric power, communications, meteorology, railway, oil field, construction, metrology, scientific research and teaching units, industrial and mining enterprises and other fields.
• ❤❤(4)The iron core of ETCR030A clamp current sensor is made of iron-nickel alloy, and the influence of external magnetic field is minimal, which ensures high precision, high stability and high reliability of year-round uninterrupted measurement.
• ❤❤(5)The transformer can output current and voltage signals, and the measuring range, output signal and output interface of the transformer can be customized according to customer requirements.
