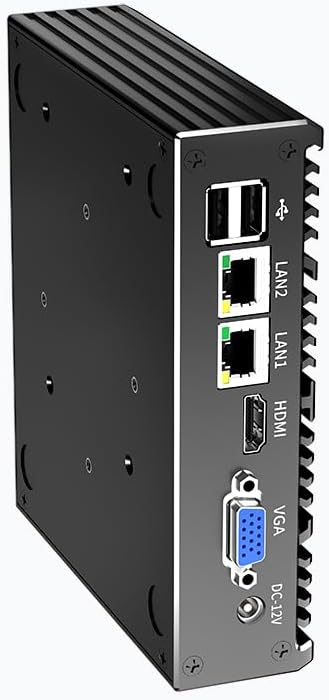

Fanless Mini PC, Industrial PC, Mini Computer Quad Core N2930, 4K HD+VGA, 2Gigabit Ethernet, USB, Mini Desktop PC 2 RS232 COM(Switch to 2 RS485), Win10/Linux,NO RAM NO SSD (NO RAM NO SSD)
Product details
| Management number | 209072344 | Release Date | 2026/03/29 | List Price | $44.00 | Model Number | 209072344 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

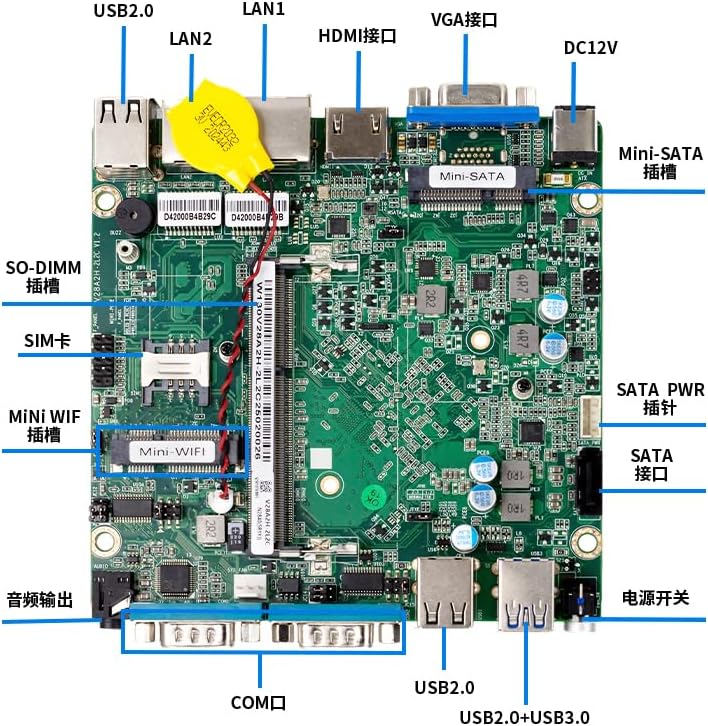

Product Highlight N2930 model: -2*Realtek PCI-E Bus RTL8106E/RTL8111H Gigabit Network Card Chip -5*USB2.0,1*USB3.0. 2*COM(RS232 signal) is the default and supports manual switching to RS485 signal. -DDR3L-1333MHz is supported, and 1*SO-DIMM memory slot 1.35V can support 8GB at most. --Support two storage: 2*SATA, one socket supporting SATA 6G standard and one MSATA socket with MINIPCIE interface. -Support 1xHDMI and 1xVGADual display -WiFi : Support WiFi/4G module Power Supply: DC 12V(2.5 5525) system Support: Wn7/Win8/Win10/Linux. Operating temperature/humidity: 0~60℃, 5% ~ 95% without condensation. Non-operating temperature/humidity: -40~80℃, 5% ~ 95% without condensation. PCB appearance color matching :PCB is sprayed with industrial green paint. -Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours. The fanless design not only provides a quiet working environment, but also improves system reliability and stability and reduces maintenance problems caused by fan failure. It is ideal for application environments that require long-term operation and low maintenance costs select.
- ◆Powerful Celeron N2930 Processor: N2930 Processor, 4 Cores 4 Threads, 2M Cache, Max Turbo Frequency 2.16 GHz, TDP 7 W.Compatible with OPNsense, Win10，Linux，ESXI, OpenWrt and other systems. Press "Delete" key to enter BIOS setup, supports Auto Power On, Wake On Lake, GPIO, PXE
- 【◆1GbE LAN: Mini Router PC with 2*Realtek RTL8106E/RTL8111H network card chip full UDE 1000M with filter connector.Soft Router can monitor network data, improve network security, powerful and widely used.Support WiFi+4G module
- ◆DDR3L Memory & Large Storage Capacity: Firewall box computer with 1 x DDR3L SO-DIMM memory 1333MHz, one socket supporting SATA 6G standard and one MSATA socket with MINIPCIE interface.
- ◆UHD Graphics & Dual Display: N2930 processor integrated UHD Graphics, HD and VGA dual display interfaces support 4K@60Hz.
- ◆Rich interfaces: 2 x1000M Realtek LAN,1 xUSB3.0, 5 xUSB2.0, HDMI,VGA,AUDIO,2 RS232 COM supports data storage and system boot.
- Attention: When purchasing an unconfigured product, it is necessary to use it in conjunction with memory and hard drive. Please contact customer service if you have any questions!
| Brand | UDPTCP |
|---|---|
| RAM Type | DDR3 SDRAM |
| Model Name | TF-N2930-2C-2L |
| Resolution | 3840 x 2160 |
| Item Weight | 4 Pounds |
| Aspect Ratio | 16:9 |
| Display Type | External UHD display |
| Manufacturer | UDPTCP |
| Memory Speed | 1333 MHz |
| Model Number | TF-N2930-2C-2L |
| Video Output | HDMI |
| BuiltIn Media | Water Cooling |
| Cooling Method | FAN |
| Keyboard Layout | QWERTY |
| Processor Brand | Intel |
| Processor Count | 1 |
| Processor Speed | 1.83 GHz |
| Total Usb Ports | 6 |
| Video Processor | Intel |
| CPU Model Number | N2930 |
| Operating System | Windows |
| Processor Series | Celeron N2930 |
| Processor Socket | FCBGA1170 |
| Graphics Ram Type | L2 cache |
| Native Resolution | 3840 x 2160 |
| Hardware Interface | Ethernet, HDMI, USB, VGA |
| Memory Clock Speed | 1333 GHz |
| Hard Disk Interface | Serial ATA |
| Graphics Coprocessor | Intel UHD Graphics |
| Graphics Description | Integrated |
| HumanInterface Input | Mouse |
| Warranty Description | One year warranty |
| Hard Disk Description | SSD |
| RAM Memory Technology | DDR3 |
| Memory Slots Available | 1 |
| Video Output Interface | HDMI, VGA |
| CPU Model Speed Maximum | 2.16 GHz |
| Connectivity Technology | Ethernet, HDMI, USB, Wi-Fi |
| Graphics Card Interface | Integrated |
| Ram Memory Maximum Size | 8 GB |
| Specific Uses For Product | Everyday Use |
| Display Resolution Maximum | 3840x2160 |
| Total Number of HDMI Ports | 1 |
| Number of Component Outputs | 2 |
| Personal Computer Design Type | Mini PC |
