FNB58 USB Tester, Digital Voltmeter Current Tester USB Type-C Fast Charge Protocol Power PD Trigger Detection Max 7A Ammeter USB Test Meter Voltage Current Testers Tool Power Meter Voltmeter

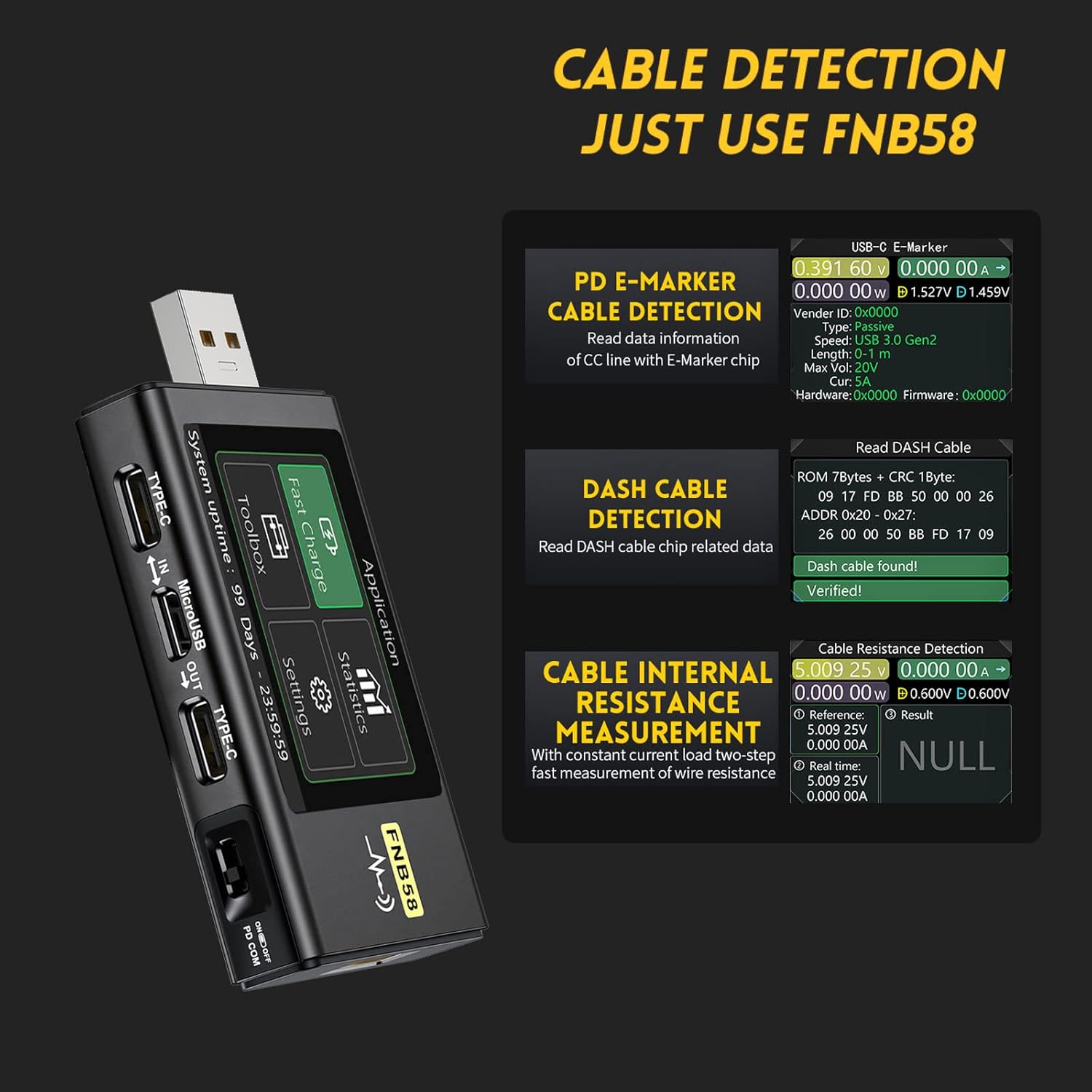

Features: 1. FNB58 USB tester is a high-reliability, high-safety USB voltage andcurrent detection meter and a mobile communication terminal fast chargingtrigger. 2. PD E-MARKER CABLE DETECTION function makes it read data information of line with E-Marker chip, and DASH CABLE DETECTION function makes it read DASH cable chip related data, also support cable internal resistance measurement. 3. Use external 16-bit ADC, PD protocol physical chip. Specifications: Type: Without BT function Equipment Temperature: ℃/℉ Device Uptime: 99 days 23 hours 59 minutes 59 seconds Record Time: 99 days 23 hours 59 minutes 59 seconds Monitor Voltage: Ranges: 428V Resolution: 0.00001V Accuracy: (0.2‰+2) Monitor Current: Ranges: 07A Resolution: 0.00001A Accuracy: (0.5‰+2) Monitor Power: Ranges: 0120W Resolution: 0.00001W Accuracy: (0.5‰+2) Load Equivalent Internal Resistance: Ranges: 09999.9Ω Resolution: 0.0001Ω Accuracy: (0.5‰+2) D+/D- Voltage: Ranges: 03.3V Resolution: 0.001V Accuracy: (1.0％+2) Capacity: Ranges: 09999.99Ah Resolution: 0.00001Ah Energy Used: Ranges: 09999.99Wh Resolution: 0.00001Wh Cable Resistance: Ranges: 09999.9Ω Resolution: 0.0001Ω Package Includes: 1 x FNB58 USB Notes: Do not connect the monitoring interface to a power supply exceeding 28V.

• Fast Charge Recognition Mode: PD2.0, PD3.0, PPS, QC2.0, QC3.0, QC4, FCP, AFC, PE, DASH VOOC, SuperVOOC, etc. (NOTES: Without Bluetooth Function)
• Super Compatibility Ultra-Precise Data Detection: 0.0001 low resolution, real-time detection of subtle changes in voltage, current and power while recharging.
• 10 Groups Of Energy Recording Battery Capacity Calculation: Support 10 sets of charge and discharge energy data records. Built in battery capacity calculation formula. The battery capacity can be quickly calculated from the recorded data.
• Four Functions Curve Display: 1. Real-time voltage and current curve for view recharging curve changes in real time Abnormal recharging is found immediately; 2. The offline curve recording support up to 9 hours offline voltage and current curve recording, show up during recharging; 3. D+D1 voltge curve can show the recharging protocols changes and master in time; 4. The high-speed power supplys ripple measurement curve can show you the chargers ripple measurement.
• LCD Display: 2.0-inch LCD high-definition display, the measurement data is clearly visible. Compatible with all interfaces, equipped with 5P high current USB-A, 24P full-pin Type-C input and output interface, one step faster for charging detection.
