Induction Heating Board Module ZVS Low Voltage Power Supply High Frequency Board Machine Module Flyback Driver Heater Brass Coil 1000W 12V-48V 20A for DIY

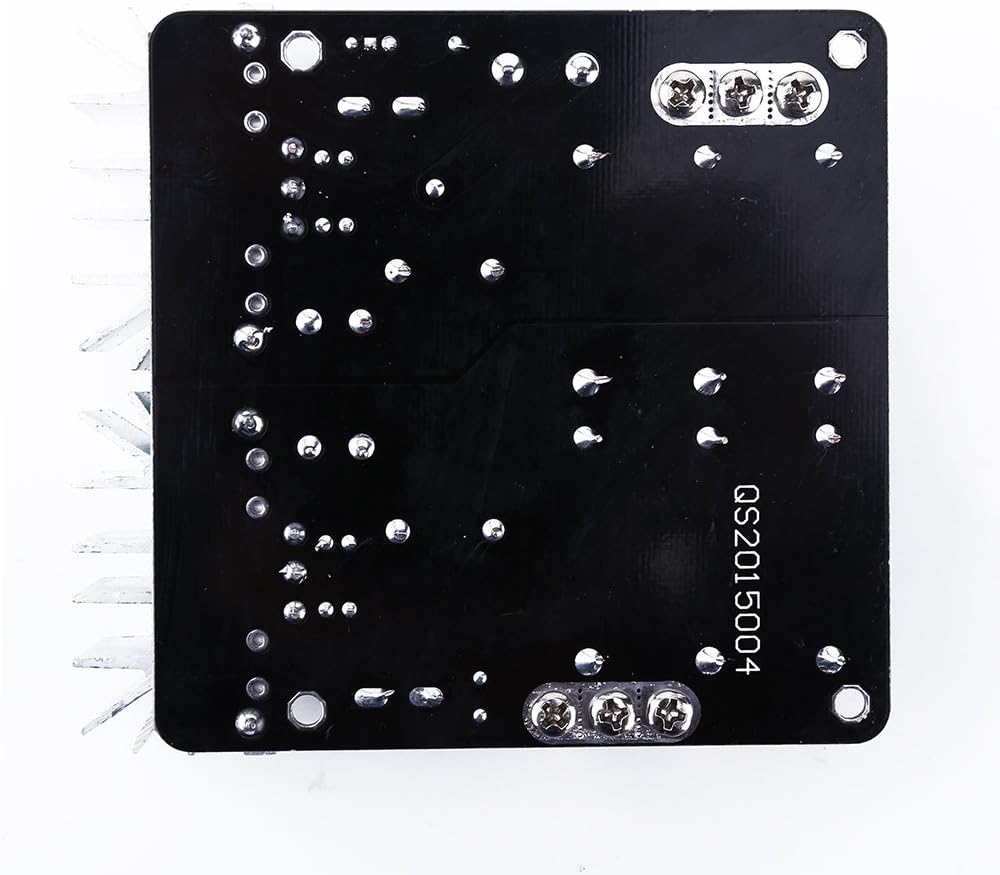

Features: 1.Made of high quality FR4 material ,nontoxic, corrosion and wear resistant 2.The inner diameter of the heating coil is 40mm 3.Maximum power 1000W, maximum current 20A 4.ZVS heating power supply module including heating coil 5.Perfect product for DIY players, will exercise their hand-on ability Specifications: Material:FR4 + copper Color: as the picture Maximum power: 1000W Maximum current: 20A Input voltage :12V-48V PCB size: 11 x 11cm/4.3 x 4.4 inch Tips: 1.The kit contains a full set of driving circuit elements and brass 2.Buyers need to bring their own power and cooling unit 3.The circuit board using double-sided fiberglass board, mainly copper traces are used to widen use the entire back surface of the resonant circuit common, continuous work, please add a fan to blow down from above, to the resonance capacitors and other components cool 4.The use of switching power supply Please note that due to high power are generally slow start function, which just opened machine output voltage is slowly rising, while it is turned on before the induction heating circuit if the voltage rises to 12V, because start insufficient voltage can not afford to vibration, resulting in two simultaneous conduction mos tube so burned components; So the first will start switching power supply voltage reaches 12V above and then access the induction heating circuit 5.The volume of the object being heated inside the heating coil can not exceed 1/5 of the volume (if the heating cylinder, then heating coil diameter less than the diameter of 1/3), or it may be due to overload or burn out the power supply to the circuit Package Include : 1 x ZVS Low Voltage Induction Heating Board 1 x Brass

• [Low Voltage Heating Module]: This section of induction heating using low-voltage DC power supply 12-48V; Maximum power 1000W, maximum current 20A ; The higher the voltage, the higher the heating current, the better the effect
• [Driver Board with Heating Coil]: ZVS heating power supply module includes heating coil. Because of its moderate power, this induction heating board module can do hardening, annealing and any other heat treatment
• [High Quality Material]: This induction heat board is made of high quality FR4 material, nontoxic, corrosion and wear resistant, durable and high strength, has a long service life
• [Specification]: The inner diameter of the heating coil is 40mm and the height of the spool is 50mm; The reel accepts a 40mm dipstick
• [Easy to Use]: Low Voltage Heater Ignition Coil Flyback Driver can be used with a graphite crucible melting gold, silver, copper, aluminum and other metals, uniform heating fast, very convenient
