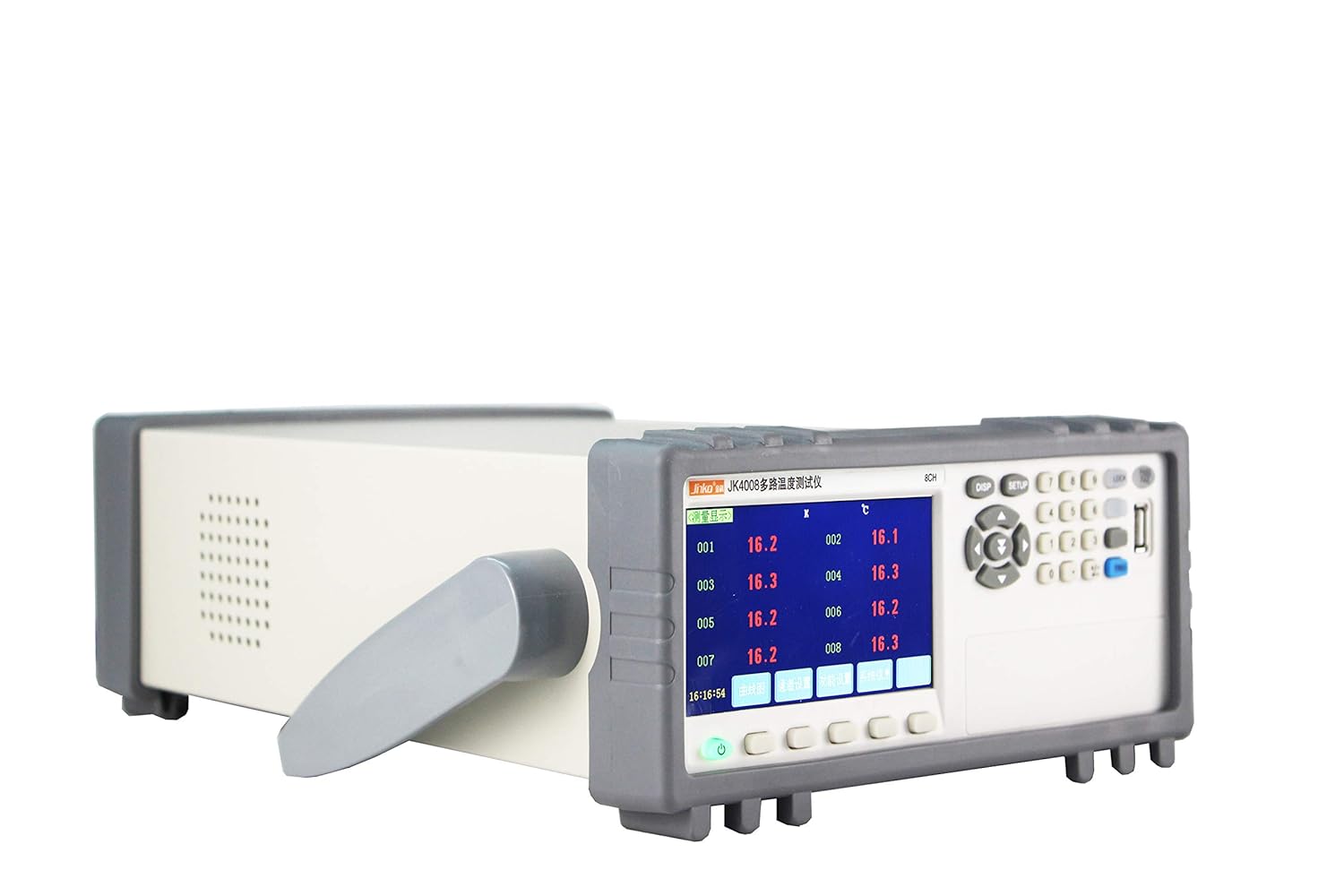

JK4032 Temperature Data Recorder displaying 32 Channels

Product introduction: The newly upgraded JK4000 series is a multi-channel temperature recorder controlled by ARM microprocessor. It adopts 4.3 inch color display and multi-channel parallel test. Multi-channel temperature recorder can collect, alarm and transmit multi-channel temperature simultaneously. The JK4000 series sampled the most advanced testing principles to make the temperature test resolution to 0.1 degrees.It has wide adaptability and supports K/N/E/J/T/R/S/B thermocouple. The test range is from -200℃～1800℃. The multi-channel temperature recorder is equipped with RS232 interface. It can directly upload data to PC, and also has USB interface. When it is not convenient to connect to PC, it can save measured data directly to U disk, and then transfer data to PC when needed.And can accept module combination. No matter you need only a few simple data recording channels, you still need hundreds of thousands of performance channels, and provide free communication. Data acquisition, analysis and printing can be easily realized through PC software. With a strong anti vibration shell, it can work in a harsh environment. All isolated digital and analog signals, JK4000 series U disk interface, support real-time data storage. At the same time test and display instrument curve number can be arbitrarily extended, permanent upgrade. Characteristic: 1: large screen color liquid crystal (4.3 inch) measuring window display all the parameters 2:The operation interface is highly humanized, concise and clear, without noise at work. 3:The 8, 16, and 24 (32) channel data are collected at high speed in real time and are displayed simultaneously at the same interface. 4:The ARM microprocessor uses a patch integrated circuit to further improve the stability and accuracy. 5:The volume of the instrument is reduced and the weight is reduced. 6:Free pluggable of channel module 7:The USB interface can store the collected data in the U disk. Through the computer monitoring software.

• multi-channel temperature recorder, temperature meter, thermometer, temperature data logger
