JRready ST5228 Extractor Tools,Removal Tools Kit for JST/AMP .062" /Molex .062" & .093” Pin and Socket Connectors, Male Female Connector Tube Type Pin Extractor Tool kit+ST6549 .062" Pin Connector Kit

JRready ST5228 Extractor Tools,Removal Tools Kit for JST/AMP .062" /Molex .062" & .093” Pin and Socket Connectors, Male Female Connector Tube Type Pin Extractor Tool kit+ST6549 .062" Pin Connector Kit

• 【Extraction Tools Kits Size】DRK-T210250 (ID: 2.1mm/0.082", OD: 2.5mm/0.098"); DRK-T310360 (ID:3.1mm/0.12", OD: 3.6mm/0.14"); DRK-T220290 (ID: 2.2mm/0.086", OD: 2.9mm/0.11"); DRK-T270320 (ID: 2.7mm/0.1", OD: 3.2mm/0.125"); DRK-T275320 (ID: 2.75mm/0.108", OD: 3.2mm/0.125"); JRconDRK-T320360 is suitable for Molex .093” connector. JRconDRK-T220260 is suitable for Molex .062” connector.
• 【Housing Connector Performance】 The housing connectors is made of PA66 material, rated voltage is 250V AC/DC, operating temperature -40℃ to +105℃, the flame retardant grade is UL94-V2,. Compatible with Molex Standard .062 "Series connector-3.68MM pitch. PLEASE NOTE: The connector housing is transparent white. Exposure to air may result in slight color differences, but it doesn't affect the performance of the product. If you have any questions about this, please contact us anytime.
• 【Terminal Contact】 The terminals are made of tin-plated brass for better electrical conductivity, oxidation and corrosion resistance. Dual-locking tangs help prevent backing out ensuring a strong electrical connection. Opening design reduces the insertior force and improves the insertion and extraction durability more than 100 times. Pin 1.57mm diameter, Wire range 18-22AWG(0.32mm² to 0.8mm²), rated current 5A.

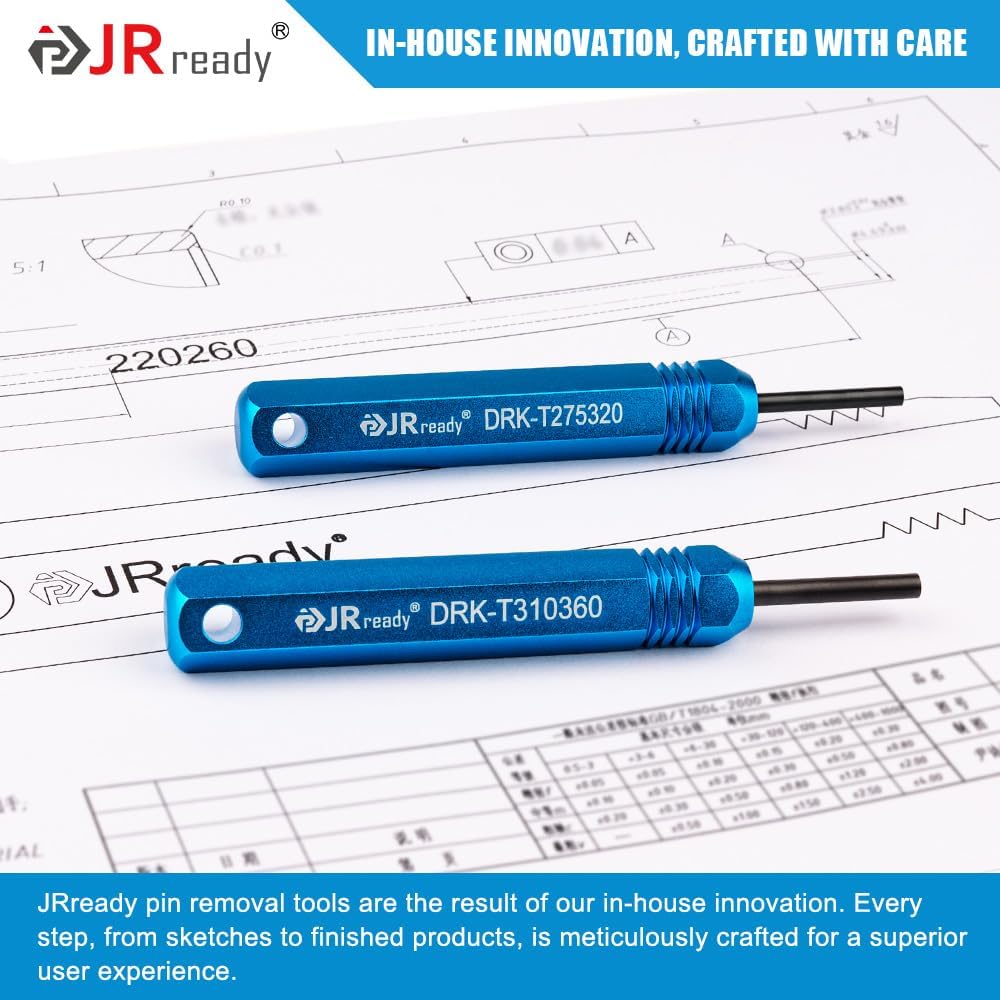

• 【Pin Extractor Tool 】The unique smooth built-in plunger design pushes pins out from behind the connector blocks, the pull-out and lock protective cover effectively safeguards the tips. The pin extractor tool features a chamfered design for accurate fit with connectors. Made from special materials with hardness up to HV500, these tips ensure durability, wear resistance, and toughness.
• 【Compatible with MOLEX Models】 Molex Standard .062" Series Connectors: 2 pin connector-03061023/03062023; 3 pin connector-03061032/03062032; 4 pin connector-03061044/03062044; 6 pin connector-03061062/03062061; Contacts pin: 02062103 / 02062101，socket: 02061103 / 02061101.
