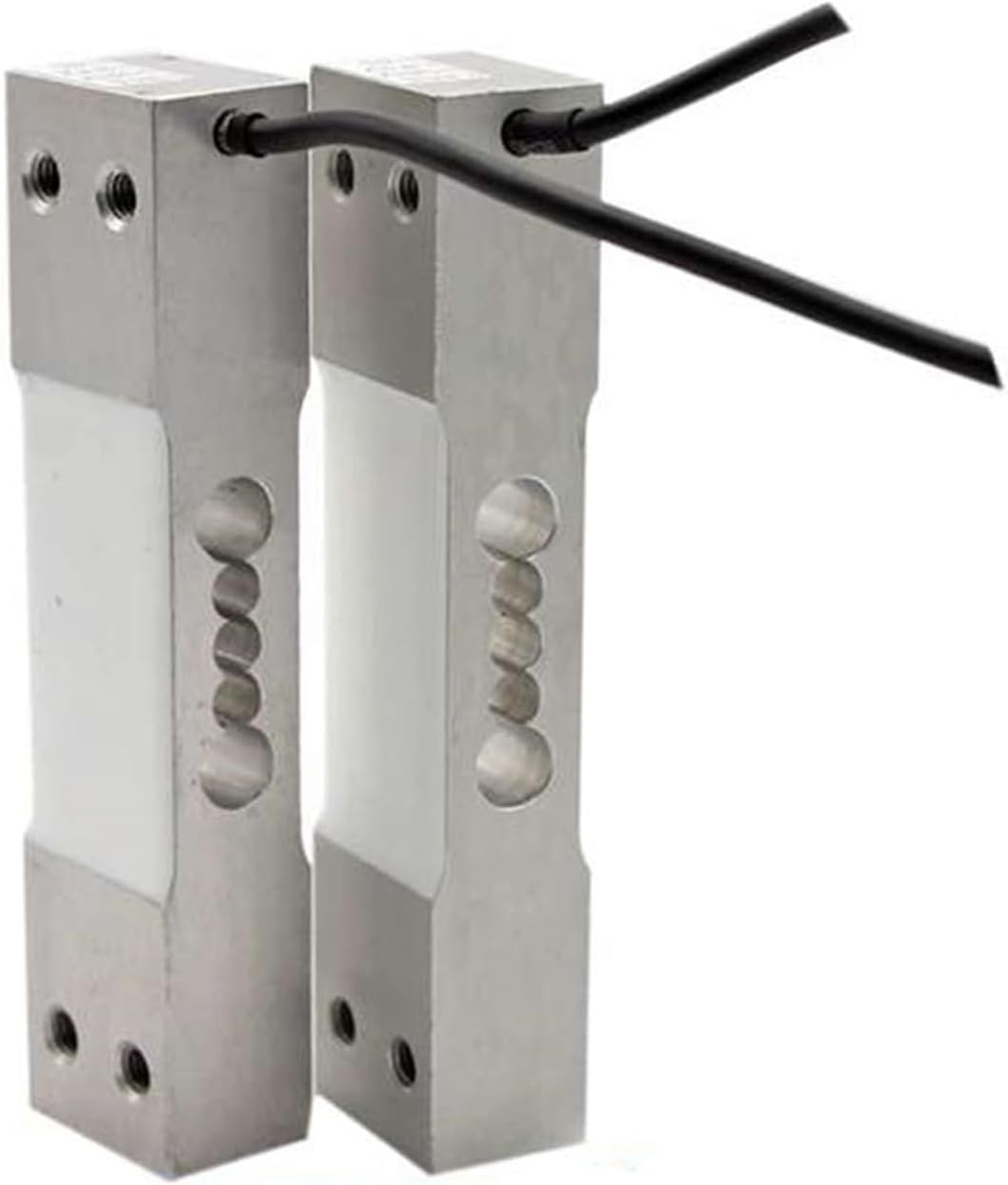

Load Cell, Load Cell Frame Platform Scale Aluminum Alloy Weight Sensor Single Point Micro 3kg-100kg Electronic Miniature Pressure Sensor,Test Tension(3kg load)
Product details
| Management number | 210901063 | Release Date | 2026/04/04 | List Price | $20.00 | Model Number | 210901063 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

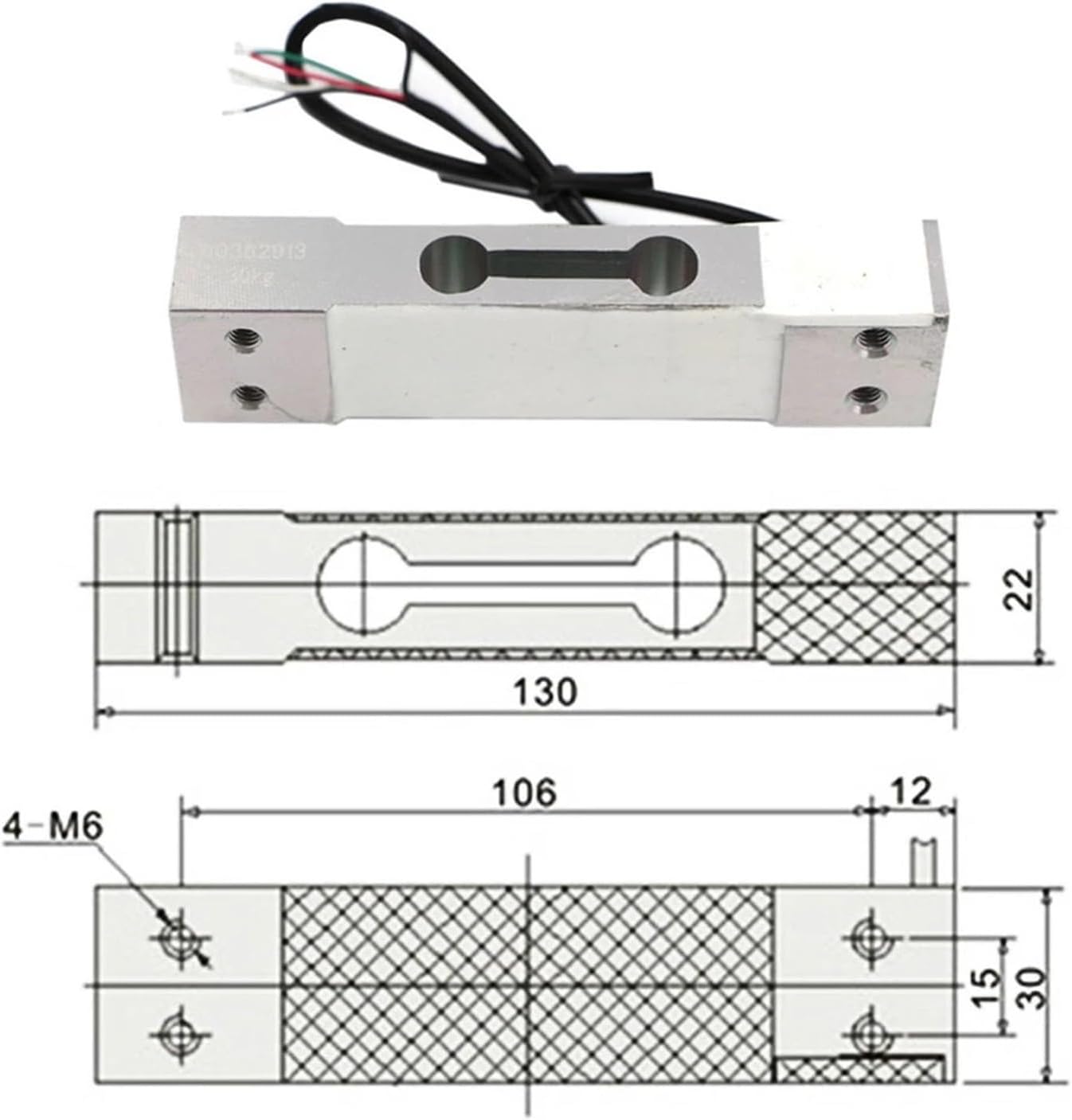

Product specifications Rated load 3/ 5/ 6/ 10/ 15/ 20/ 30/ 40/ 50/ 60/ 100kg Temp. effect on span 0.02%F.S/10 Sensitivity 2.0±0.2mv/v Compensated temp. range -10~40 Comprehensive error ±0.03%F.S Operation temp. Range -20~60 Creep ±0.02%F.S/30min Excitation voltage 9-12VDC Zero output ±1.5%F.S Maximum safe overload 120%F.S Input resistance 405±6 Ultimate overload 150%F.S Output resistance 350±3 Protection class IP65 Insulation resistance 5000M(100VDC) Max. platform size 250×350mm Temp. effect on zero 0.03%F.S/10 Dimension 130×30×22mm Wiring schematic diagram Input:+(red)-(Black),Output:+(green)-(white)
- Glue sealing treatment
- Aluminum alloy material,Surface anodization
- Versatile and Easy to Install，small comprehensive error
- Adaptable and Reliable. Its reliable performance ensures the utmost safety during operations
- This product is suitable for commercial electronic price computing scales, weighing scales and other small countertop electronic weighing equipment
| Size | 1 |
|---|---|
| Color | 3kg Load |
| Item Weight | 1.76 ounces |
| Part Number | 319921628 |
| Manufacturer | LJIA |
| Power Source | ac |
| Number Of Pieces | 1 |
| Item model number | 319921628 |
| Batteries Required | No |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
| Item Package Quantity | 1 |
