Non-Contact Phase Detector Phase Sequence Tester with Phase LED Indicator Clamp Wire Size Outer Diameter 1.6 to 6mm

Shipping Policy : Battery Not Included During the Shipping Technical Specifications * Function: phase detection (normal phase, reverse phase, phase deficiency), live line inspection, simple power inspection, break point location, line maintenance * Clamp Wire Size: Outer Diameter ø1.6-ø16mm * Live Voltage Range: AC 70 ~ 1000V, 45/65Hz (sine wave continuous input) * Auto Power off: After 5 minutes, the meter automatically off power * Working Temperature and Humidity: -10°～55°; below 80%rh * Storage Temperature and Humidity: -20°～60°; below 90%rh * LED Display ◆ Positive phase: Four lights of phase detection rotate in Clockwise direction, with intermittent short beeps ◆ Reverse phase: Four lights of phase detection rotate in counterclockwise direction, continuous beep ◆ Live power: L1, L2, L3 lamp lighting within the voltage setting range; ◆ Phase deficiency: L1 or L2 or L3 lights are off; ◆ Open circuit: L1 or L2 or L3 light does not light. * Beep: Normal phase, the instrument emits intermittent short beeps; in reverse phase, the instrument emits a continuous beep. * Battery check: The power indicator of the power supply is on after the power is turned on; the battery is low; the LOWBATTERY lamp is on * Magnetic force: Four magnets are attached to the back of the instrument. Suction and hanging on the distribution box can withstand 800g. * Clip length: 0.6m * Measurement maximum voltage: AC1000V * Insulation strength: 5.4kVrms * Maximum rated power: 300mVA * Suitable for safety regulations: EN61010-1:2001, EN61010-031:2002, Pollution Degree 2, CATIII (600V), Instantaneous overvoltage 6000V * Weight: about 200g * Size: Wx H x T ,70mm x 75mm x 30mm * Power supply: 5th battery (LR6) x2 section（Battery not included in the package）

• ◆ non-contact phase sequence table, non-contact phase sequence detection, clamp wire diameter Φ1.6mm ~ Φ16mm, use the insulation clamp directly clamp insulation caught FireWire can be detected without stripping the wire, without touching the high pressure Exposed FireWire

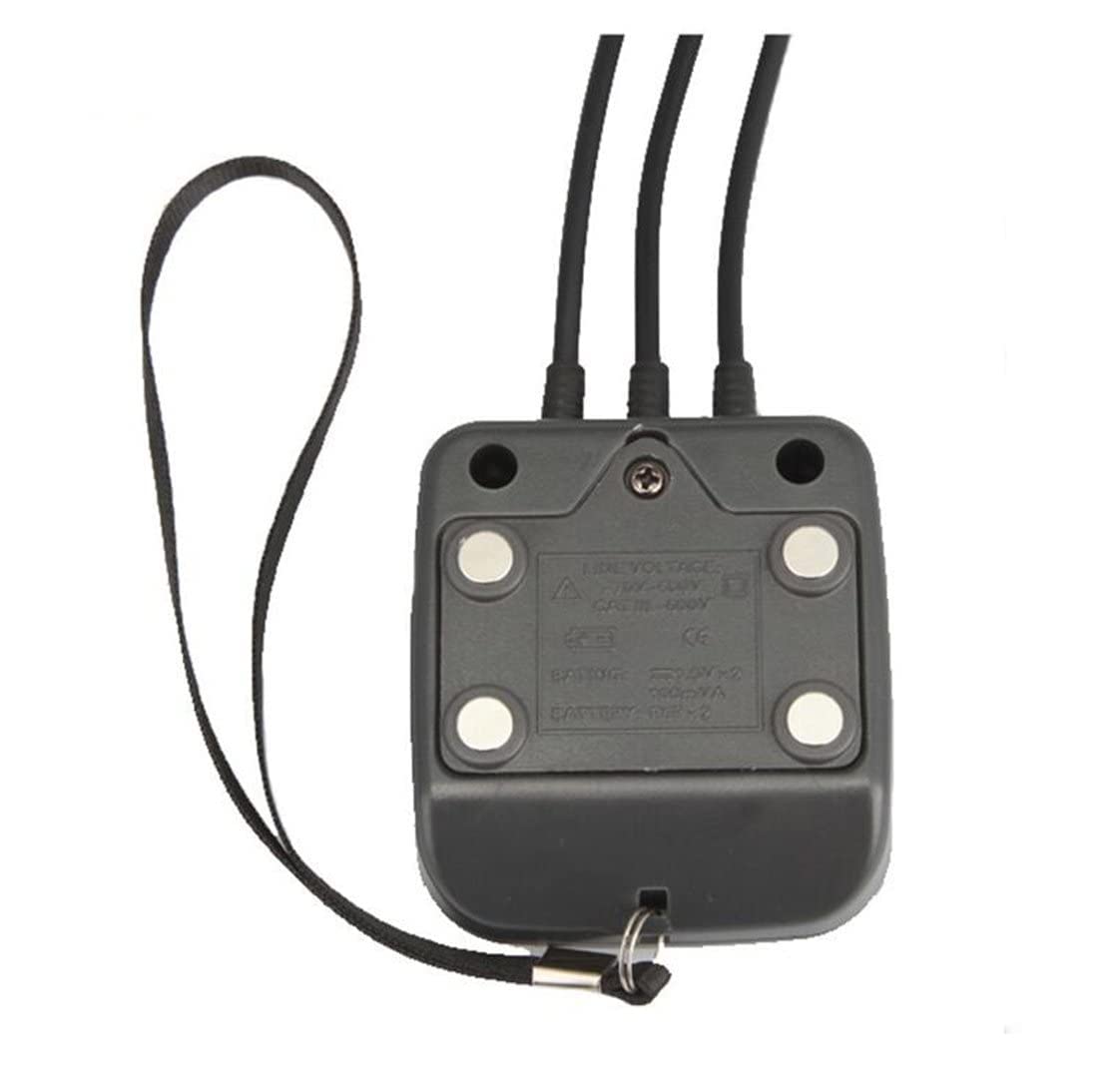

• ◆ Live Voltage Range: AC 70 ~ 1000V, 45/65Hz (sine wave continuous input); The bottom panel of the instrument is equipped with magnets. The instrument can be attached to the metal shell of the device during the test. The operation is more convenient.
• ◆ Auto Power off: After 5 minutes, the meter automatically off power,LED dynamic display, intuitive and clear; has a better power-saving performance with the maximum rated power of 100mVA.
• ◆ The utility model has the advantages of exquisite structure, accurate reading and convenient carrying.More sensitive clamp, can even sense the AC voltage signal as low as a few Volts, with a wider range of live electricity.
• ◆ Suitable for safety regulations: EN61010-1:2001, EN61010-031:2002, Pollution Degree 2, CATIII (600V), Instantaneous overvoltage 6000V
