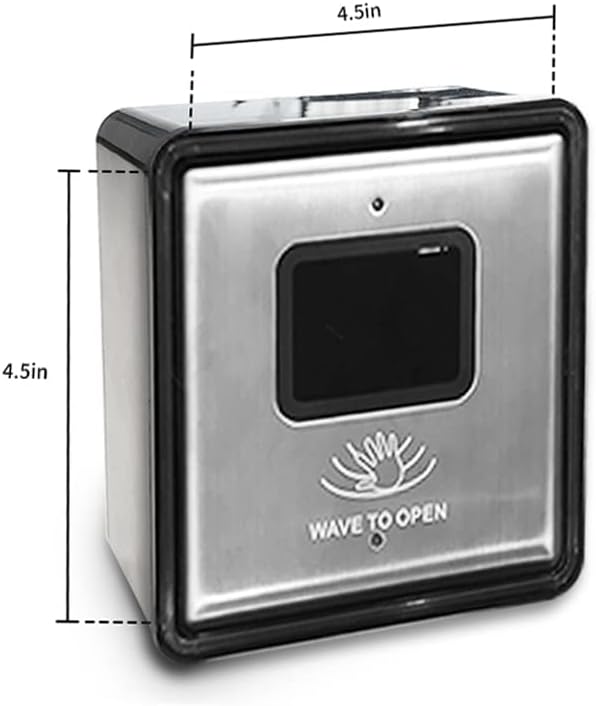

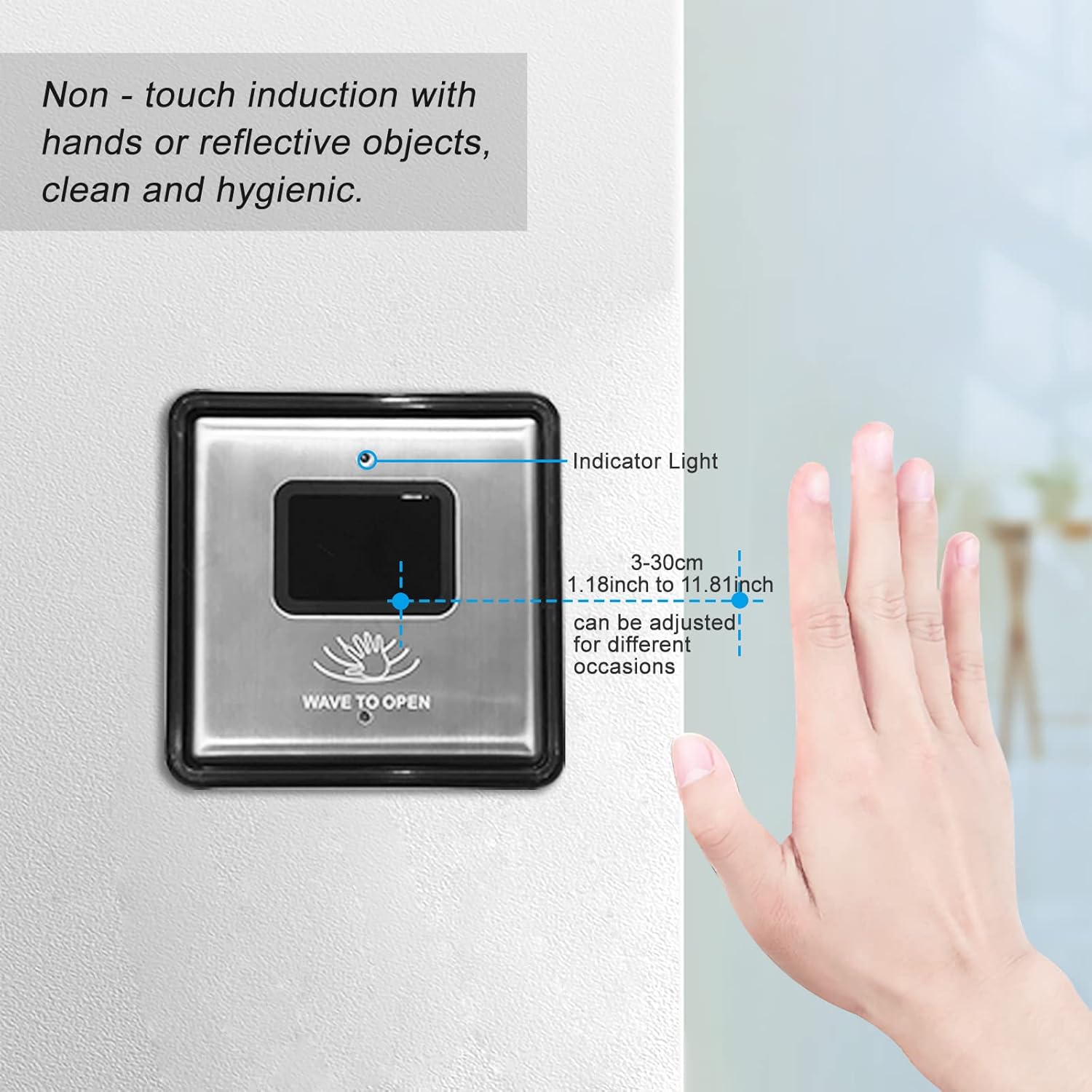

Olideauto Smart WiFi Hand Free Wave Sensor,Wireless Touchless Wave 5.12'' Square Single Panel Olide-512 with Smart WiFi Built-in Receiver Olide-510FW

The Smart Wifi Hand Free Wave Sensor,Wireless Touchless Wave 5.12'' Square Single Panel Olide-512 with Smart WIFI Built-in Receiver Olide-510FW is workable with kinds of automatic door openers and access control system if only they have terminals of NO,COM,AC/DC power input to connect with receiver of the wireless hand wave sensor button Complete set wireless hand wave sensor switch includes: 1pcs square 4.5'' hand wave sensor panel Olide-512,Screws,1pcs smart wifi built-in receiver Olide-510FW Technical Data of Wireless Smart WIFI Touchless Hand Wave Sensor Button Model: Olide-512 Material: Stainless Steel Power Supply: 6V(4pcs AA Alkaline battery) Emission Current: ≤10mA Static current: ≤80UA Infrared modulation frequency:38KHz Infrared scanning interval:100ms Battery Life: 500times/day ,can use 450days Response time: less than 130ms Working temperature: -42℃∽45℃ Technical Data of Wired Receiver Olide-510FW Model: Olide-510FW Power Supply : AC/DC12-30V Emission Current: 140mA (DC 12V) Static current: 65mA(DC 12V) Connection Capacity: 3A DC30V WIFI Function: Only 2.4GHz routers can be connected

• [Wireless Square Hand Free Wave Sensor Switch for Automatic Door】The single square wireless hand wave sensor button can be connected with auto door,it is hand free to open door,safe and convenient for users
• [WIFI Smart Function]The handicap hand sensor button comes with smart wifi built-in receiver,which is workabel with Tuya smart App,compatible with Alexa, Google assistant. The auto door can be remotely controlled by phone app,Alexa and google assistant after electric door opener connecting with receiver
• [2.4G Wireless Technology,High Stability of Wireless Transceiver.]2.4G wireless communication technology, good frequency consistency, high stability of wireless transceiver.Four point trigger design, ensure that the effective press,the hand wave sensor panel is wireless,easy to install
• [Work with Kinds of Auto Door,Access Control System]Large capacity output, can be used with automatic door, electric lock and access control which has terminals NO,COM,AC/DC power input to connect with receiver terminal.
• [Two Output Signal Mode Selectable] There are "hold"mode and "inching"mode selectable on receiver Olide-510FW,If the mode selection switch is turned to the"M"position,it is output of inching,each active will output the door opening signal of about 1.5s;if the mode selection is turned to the L position,it is hold-type,each active will output the keeping signal,active again to reverse.
