Optical Densimeter Densitometer Optical Density Tester Meter Gauge Light Transmittance Tester with Holder for Dot Area Density Welding Mask Glass X-ray Film Lens Ink Etc

◆Shipping Policy:Battery not included during the shipping◆ Introduction :◆LS117 optical density meter measures the optical density and light transmittance at the same time, mainly for the following three types of product measurement:◆All graphic arts film, measuring absolute optical density and relative density and dot area ◆X-ray film, aluminum film materials etc, measuring absolute optical density.◆All kinds of milky white, fog material, measuring light transmittance.Features:◆Light transmittance measurement for diffuse transmission material.◆Equipped with holder, two ways of measurement available. ◆Light transmittance and the optical density can be measured simultaneously.◆Suitable for production, quality inspection and other occasions.◆High precision and wide measuring range, optical density up to OD 6.Technical Specifications◆Light transmittance measurement accuracy: ±1% (0% --- 50%); ±2% (50% --- 100%)◆Light transmittance resolution: 0.0005% (0% --- 10%); 0.005% (10% --- 100%)◆Optical density measurement range: 0.000 OD --- 6.000 OD◆Optical density measurement accuracy: ±0.02 (0 --- 2.00 OD); ±2% (2.00 --- 6.00 OD)◆Optical density resolution: 0.001 OD (0 .00 --- 2.00 OD); 0.01 OD (2.00 --- 4.00 OD); 0.1 OD (4.00 --- 6.00 OD)◆Aperture: 2mm◆Light Source: 380nm-760nm, conforming to CIE function of photopic vision◆Weight: About 576g ◆Display: 240*160 dot-matrixes LCD◆Dimension: 148mm×76mm×26mm (L*W*H) Packing List◆LS117 Optical Density Meter◆User Manual◆Certificate / Warranty Card ◆Box

• (1)The minimum test aperture of the LS117 optical densitometer is 2mm, the test accuracy is at least ±0.02, and the transmittance resolution is 0.0005%. It is suitable for some materials with extremely low transmittance and high precision.

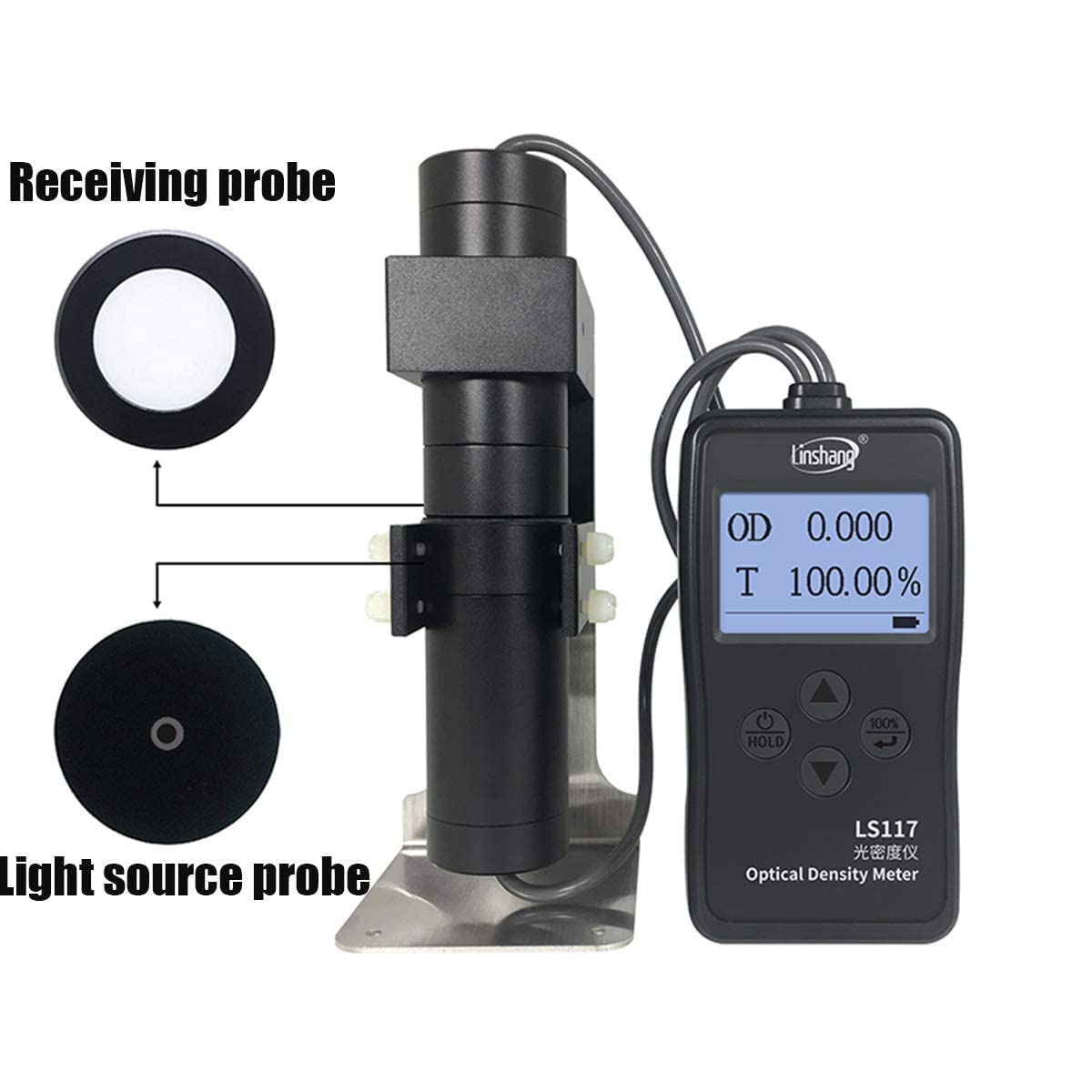

• (2)The LS117 optical densitometer is equipped with a fixed seat and support. There are two measurement methods. Small materials can be placed on the mount for testing. Large samples need to be taken out of the receiver and light source, and manually aligned.
• (3)Adopting diffuse transmission light path design, meeting the test requirements of mist materials.
• (4)Light transmittance and the optical density can be measured simultaneously.
• (5)LS117 Optical Density Meter is used for measure All graphic arts film, measuring absolute optical density and relative density and dot area,X-ray film, aluminum film materials etc, measuring absolute optical density.All kinds of milky white, fog material, measuring light transmittance.
