Original HAT560NB Generator ATS Controller Automatic Transfer Switch Control Panel

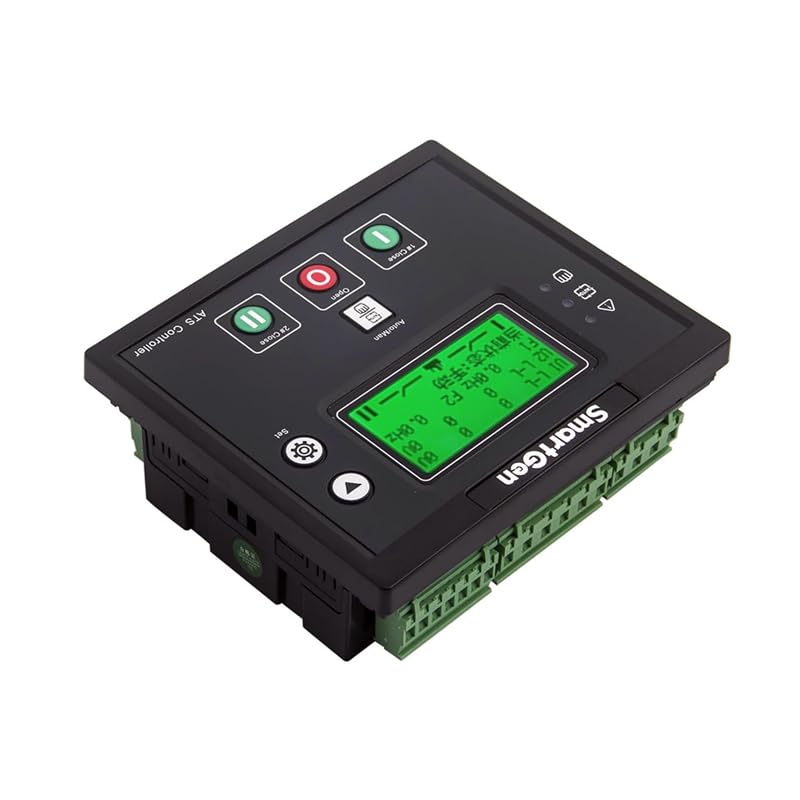

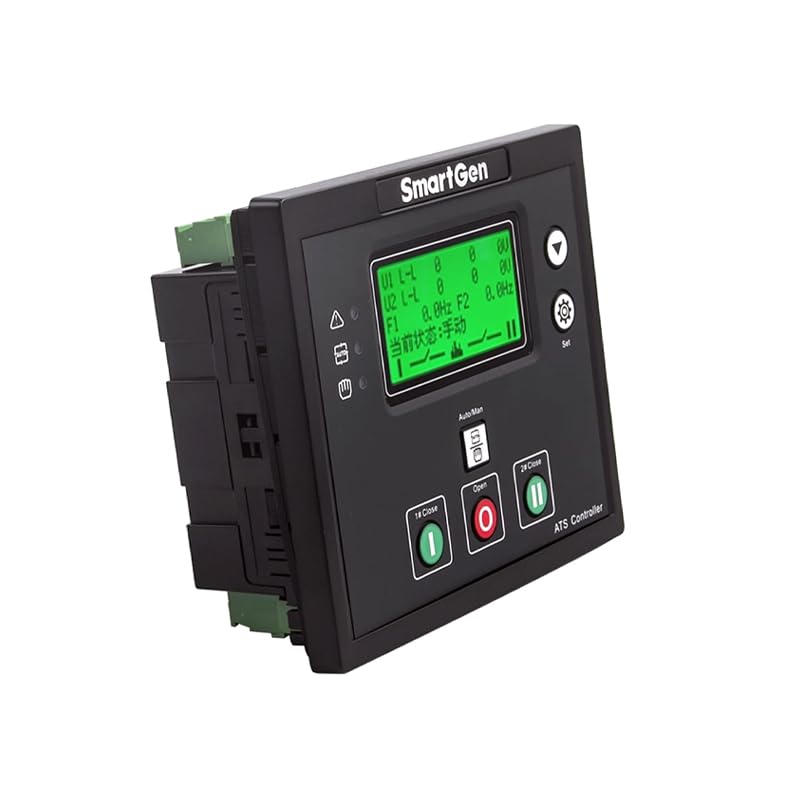

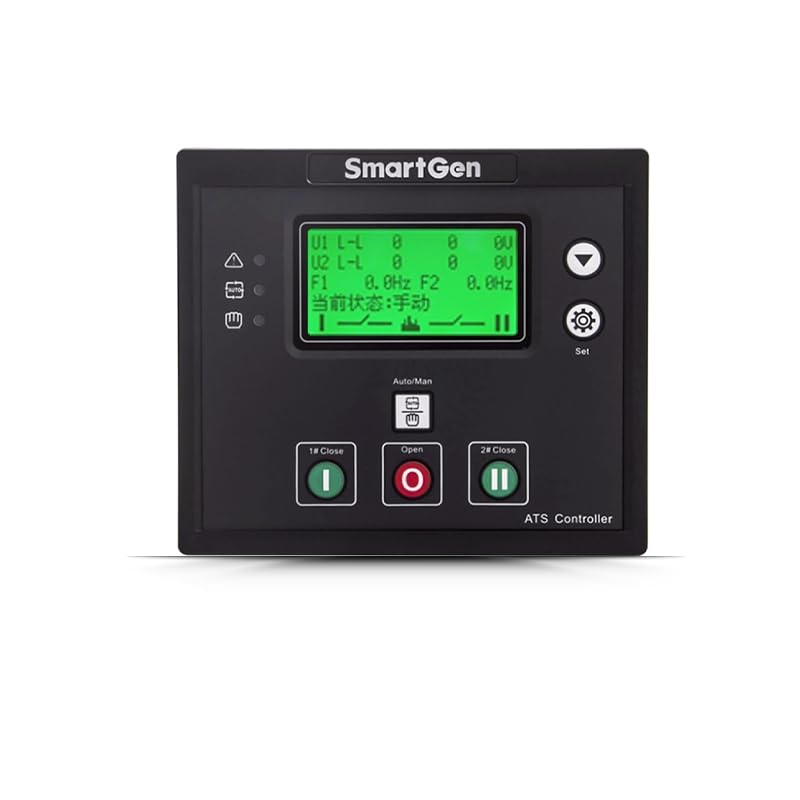

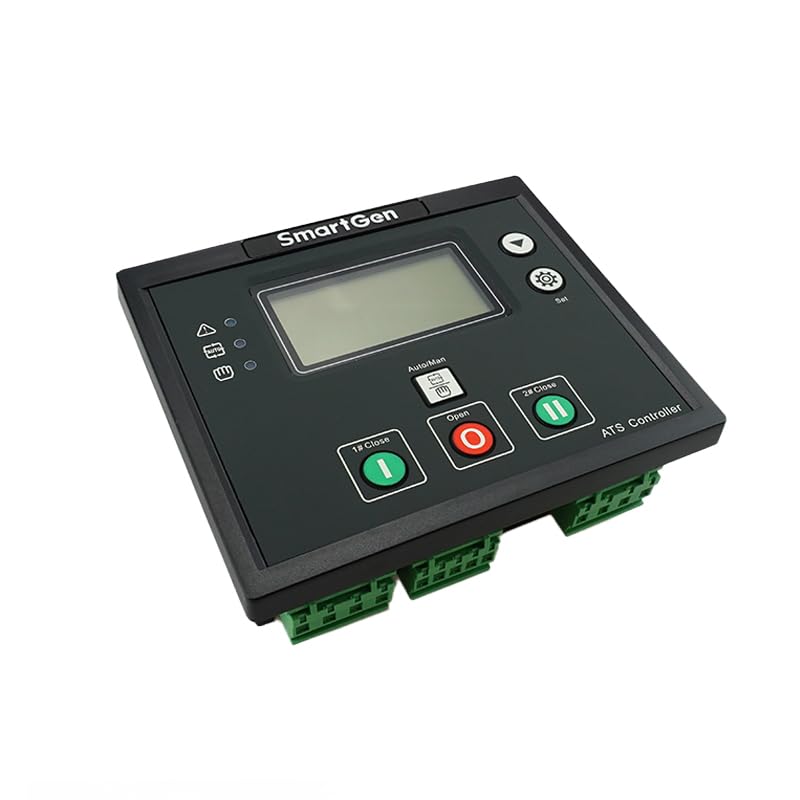

Original HAT560NB Generator ATS Controller Automatic Transfer Switch Control Panel Product Overview: HAT560N series ATS controller is intelligent dual-supply module with configurable function, automatic measurement, LCD display, and digital communication. It combines digital, intelligence and networking. Automatic measurement and control can reduce incorrect operation. It is an ideal option for ATS. The powerful Microprocessor contained within the unit allows for precision voltage (2-way-3-phase/single phase) measuring and make accurate judgment; in addition, the corresponding digital output port will active when there is over/under voltage, over/under frequency, loss of phase and other abnormal condition occurs. This controller has full consideration in various application of ATS (automatic transfer system) and can be directly used for specialized ATS, Contactor ATS, Air break ATS etc. It has compact structure, advanced circuits, simple wiring and high reliability, and can be widely used in electrical devices, automatic control and testing system of electric power, telecommunications, petroleum, coal, metallurgy, railways, municipal administration, intelligent building, etc. Technical Parameters: Display LCD(132*64) Language Chinese & English AC System 1P2W/2P3W/3P4W Alternator Frequency 50/60Hz Monitor Interface LINK Programmable Interface LINK RTC(Real Time Clock) ● Scheduled Start Genset ● Circulate Start Genset ● Switch Over Priority ● Applicable Switch Type PC Two-stage, PC Three-stage, CB and CC switch DC Suppl DC(8-35)V Case Dimensions(mm) 139*120*48 Panel Cutout(mm) 130*111 Operating Temp. (-25~+70)℃

• Smart Dual-Power Control: The HAT560N ATS controller is a configurable module for automatic transfer systems. It measures 2-way 3-phase/single-phase voltage, features a 132x64 LCD, and supports mains/generator setups. Ideal for PC, CB, and CC switches.
• Advanced Protection & Monitoring: Provides over/under voltage, frequency, phase loss, and reverse sequence protection. Includes real-time clock (RTC), event logging (50 records), and scheduled/circulate generator start/stop functions.
• Flexible Operation: Supports auto/manual modes for forced switch operations. Configurable with dual passwords for secure access. Works with ATS systems using one/two neutral positions and isolated neutral lines.
• Remote Control & Communication: Features a LINK interface and ModBus protocol for remote monitoring, control, and communication. Enables remote generator start/stop and ATS operations with system status checks.

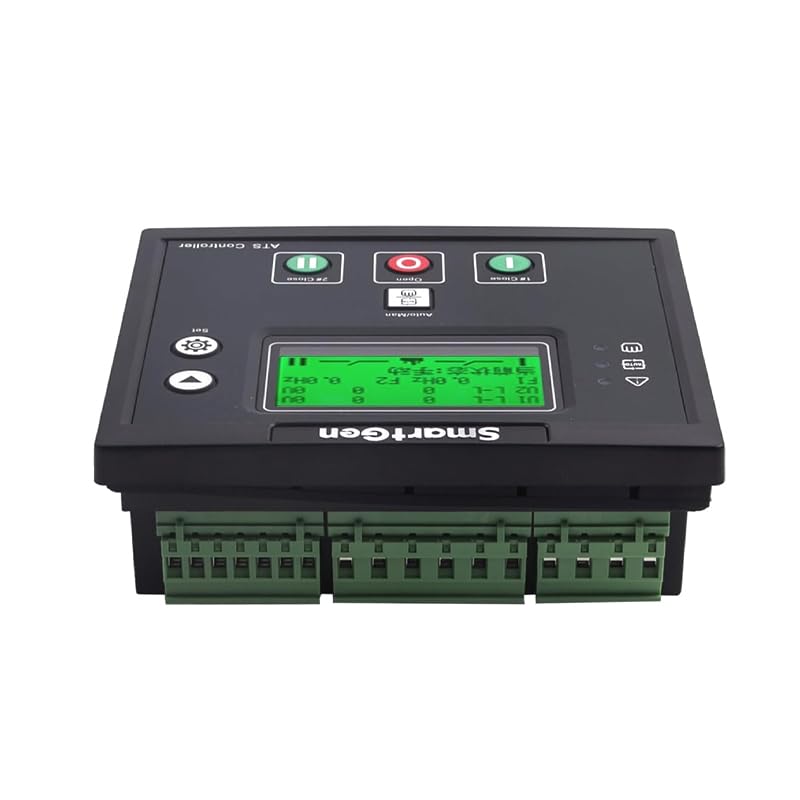

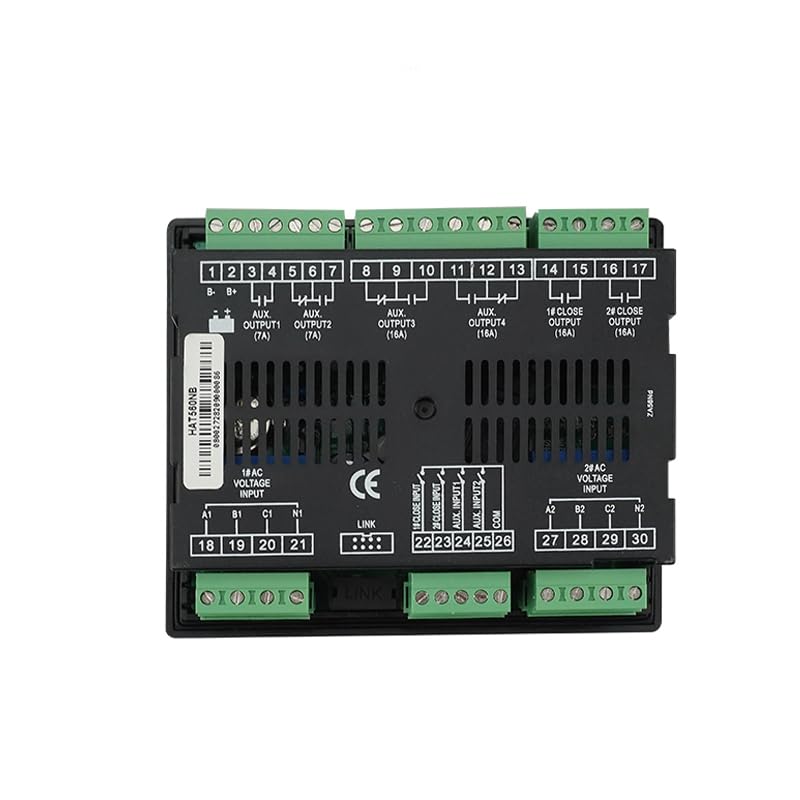

• Compact & Easy Setup: Modular design with flame-retardant ABS shell, pluggable terminals, and compact size (13912048mm). Compatible with 3-phase 4-wire, 3-phase 3-wire, single-phase 2-wire, and 2-phase 3-wire systems. Operates in -25°C to +70°C.
