PoE Ethernet/USB HUB HAT Board with ABS Case Box for Raspberry Pi Zero 2W/2WH/Zero, PoE 802.3af-Compliant Ethernet Port and 3X USB 2.0 Ports Compatible with USB 2.0/1.1
Product details
| Management number | 209080629 | Release Date | 2026/03/29 | List Price | $13.60 | Model Number | 209080629 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Overview The PoE-ETH-USB-HUB-BOX is a HUB kit with Waveshare PoE/ETH/USB HUB HAT inside. It is tailored for Raspberry Pi Zero series, small in size, each cut-out of the case is exactly aligned with the connector. The case adopts classic Raspberry Pi red/white color combination, with quality dull polish surface, effectively keeping the Zero away from dust. By using this small HUB BOX and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi Zero in only one Ethernet cable, along with 3x extended USB ports. Features PoE Ethernet / USB HUB HAT with BOX, Compatible with Raspberry Pi Zero series: Designed for Raspberry Pi Zero, compatible with Zero series boards Extended Ethernet port:USB to Ethernet conversion by the RTL8152B chip, 10M / 100M auto-negotiation PoE (Power over Ethernet) feature, 802.3af-compliant Fully isolated SMPS (Switch Mode Power Supply) 3x extended USB ports, compatible with USB 2.0 / 1.1 Angle rounded design, smooth hand feeling, "simple snap" case lid Quality ABS material, dull polish surface, anti-fingerprint Comes with two different lids, changing as you like Specifications PoE power input:37V ~ 57V DC in Power output:5V 2.5A DC out Network standard: IEEE 802.3af-compliant PoE User Manual/How-to-use: //bit.ly/3MpuA36 Package Content PoE/ETH/USB HUB HAT kit x1 ABS case x1 Rubber feet 4PCS x1 Screws pack x1 FAQ: Question:Why doesn't the Raspberry Pi recognize USB devices? Answer:Please connect the USB HUT interface to the PC by USB cable to check if the HUB can be recognized. If the HUB can be recognized by PC but not the Pi, please check if you have connected the USB connector tightly. And if you have set the USB port of Pi zero for networking, it cannot be used with the USB HUB either.
- PoE/ETH/USB HUB HAT Board and ABS case--- The PoE-ETH-USB-HUB-BOX is a HUB kit with PoE/ETH/USB HUB HAT and ABS Case inside. It is tailored for Raspberry Pi Zero series, small in size, each cut-out of the case is exactly aligned with the connector.
- Compatible with Raspberry Pi series--- Pogo pin design, which is designed for Raspberry Pi Zero, compatible with Zero series boards (Raspberry Pi Zero 2W/ 2WH/ Zero W/Zero WH/Zero)

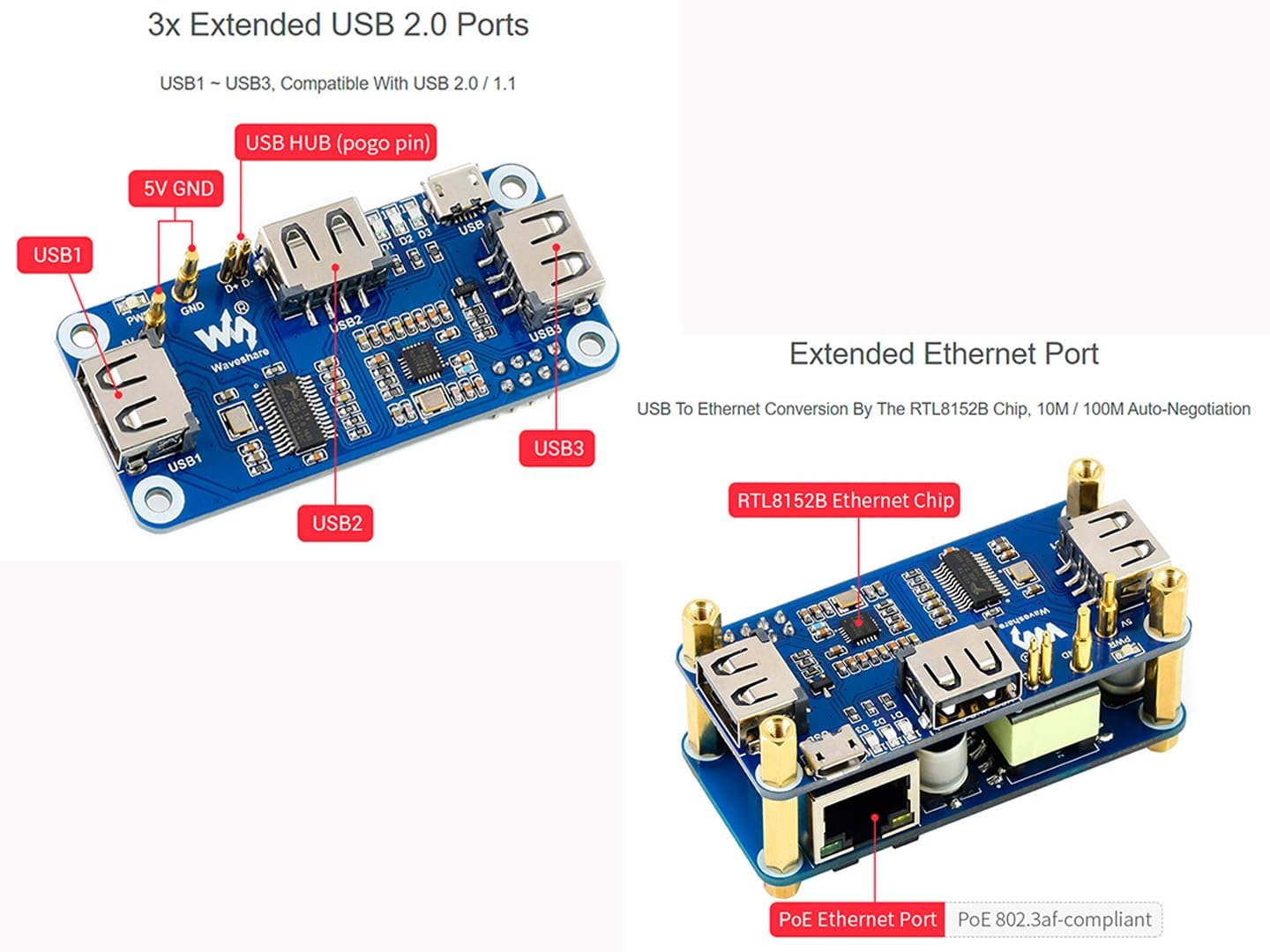

- Extended Ports---Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port; PoE (Power over Ethernet) feature, 802.3af-compliant; 3x USB 2.0 Ports, compatible with USB 2.0 / 1.1.
- Fully isolated SMPS (Switch Mode Power Supply)
- Quality ABS material, dull polish surface, anti-fingerprint Comes with two different lids, changing as you like
| Brand | waveshare |
|---|---|
| Color | PoE/ETH/USB HUB BOX Kit |
| Item Weight | 0.13 Kilograms |
| Manufacturer | Waveshare |
| Model Number | RS746 |
| BuiltIn Media | PoE/ETH/USB HUB HAT, ABS case |
| Mfr Part Number | PoE/ETH/3xUSB HUB BOX |
| Number of Ports | 4 |
| Total Usb Ports | 3 |
| Operating System | Linux |
| Compatible Devices | Keyboards, Mice, Displays, USB Peripherals, Routers, Switches |
| Data Transfer Rate | 100000000 Bits Per Second |
| Enclosure Material | Acrylonitrile Butadiene Styrene (ABS) |
| Hardware Interface | Ethernet, USB, USB 2.0 |
| Additional Features | Play, Plug |
