Pulse Frequency Signal Transmitter Rotating Current Voltage 4-20mA Module Alternating Measurement Rotational Speed(0-20MAOUT_0.1-100KHZIN)

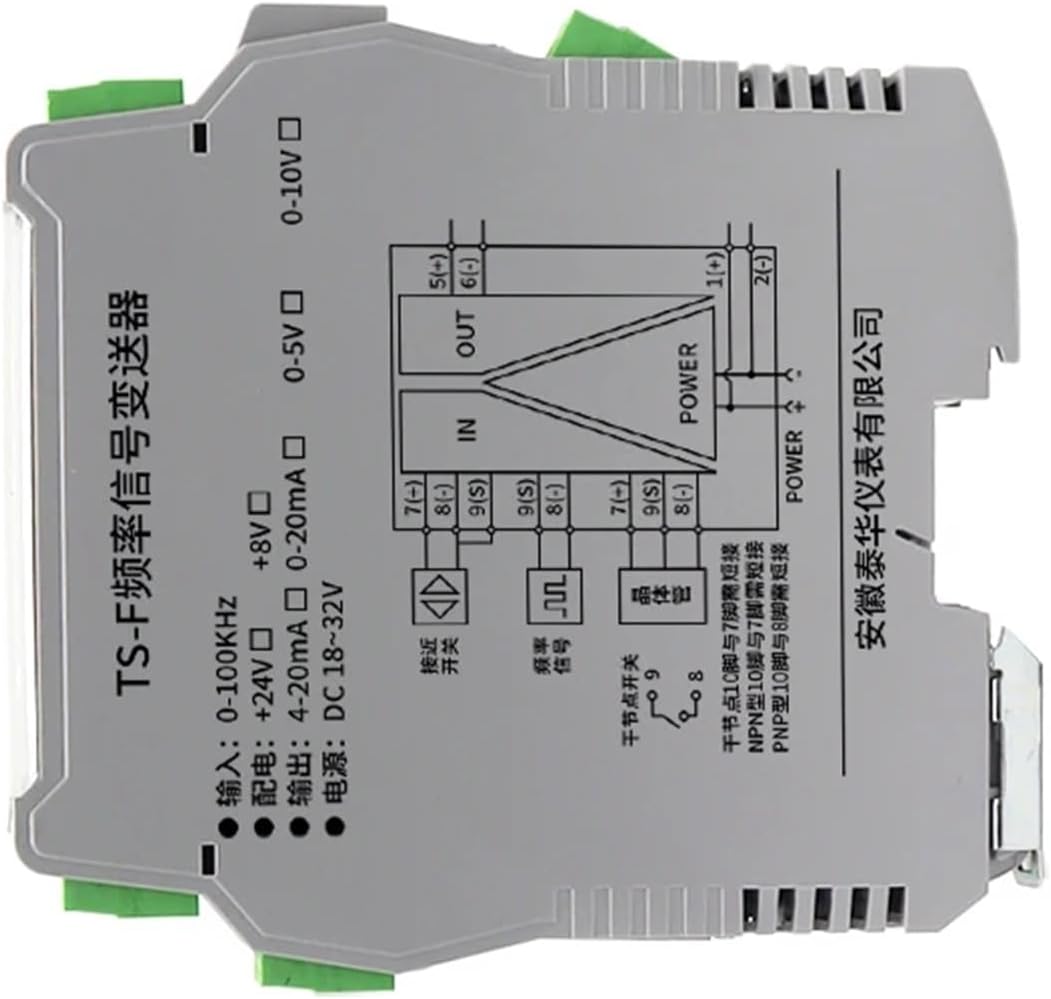

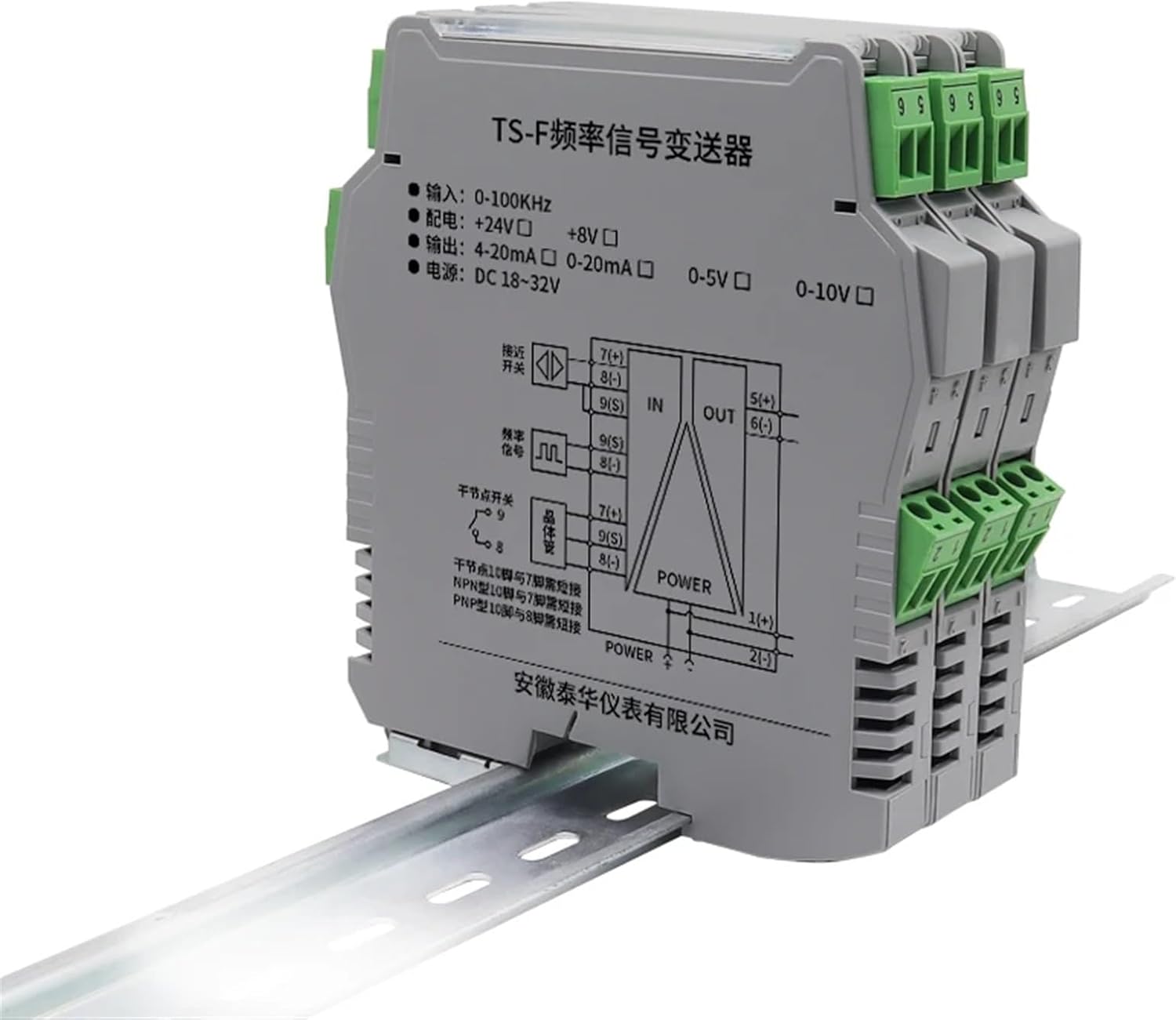

ControllersPulse Frequency Signal Transmitter Rotating Current Voltage 4-20mA Module Alternating Current Frequency Measurement RotationalTS-F Series frequency signal conversion isolator isolates and converts industrial field frequency signals into standard signals such as 4-20mA and 0-5V.Connect the PC upper computer through the micro USB interface to configure the input signal input mode, range range, high and low level threshold range, voltage division ratio, distribution voltage, damping coefficient, range range of output signal, type upper and lower limit alarm values, and other parameters.This product requires independent power supply and adopts DIN35mm standard guide rail independent installation mode (optional bus power supply function), with three isolation modes for input, output, and power supply.An intelligent frequency signal isolation converter is used to isolate and convert industrial field frequency signals into standard signals such as 4-20mA and 0-5V. This product requires independent power supply, and adopts DIN35mm standard rail independent installation method (optional bus power supply function). Input, output, and power supply are isolated at three ends.InputSignal TypeSine wave,triangular wave,square waveInput Method3Wire NPN,PNP Sensor,Passive frequency signal,Dry node signal,Two-wire proximity switchDistribution Voltage24V±10% or 12V±10%Distribution Current<;20mAFrequency Range0.1HZ~100KHZInput Range0.5~350VppOutputSignal Type4-20mA,0-20mA,0-5V,0-10V ectOutput LoadCurrent output RL<;400,Voltage ouput RL>10KBasic ParametersPowerDC24V,Voltage range:DC18-32VMeasuring Accuracy of Consumed Current<;60mA@DC24VCurrent Output Accuracy+0.015mAVoltage Output Accuracy±0.008AComprehensive AccuracyTake the larger value of measurement accuracy and output accuracyTemperature Drift±0.01%F.S/Insulation Strength1500VDC/1min(Among Power,Input and Output)Insulation Resistance100M(Among Power,Input and Output)Operating Temperature Range-20~+60Electromagnetic CompatibilityIn with GB/T 18268.1(IEC6132-1)Using Field EquipmentNAMUR proximity switches, dry node switches, and other field devices in accordance with DIN 19234, level pulse signals, three-wire NPN/PNP sensor outputs, incremental encoders, and so on
