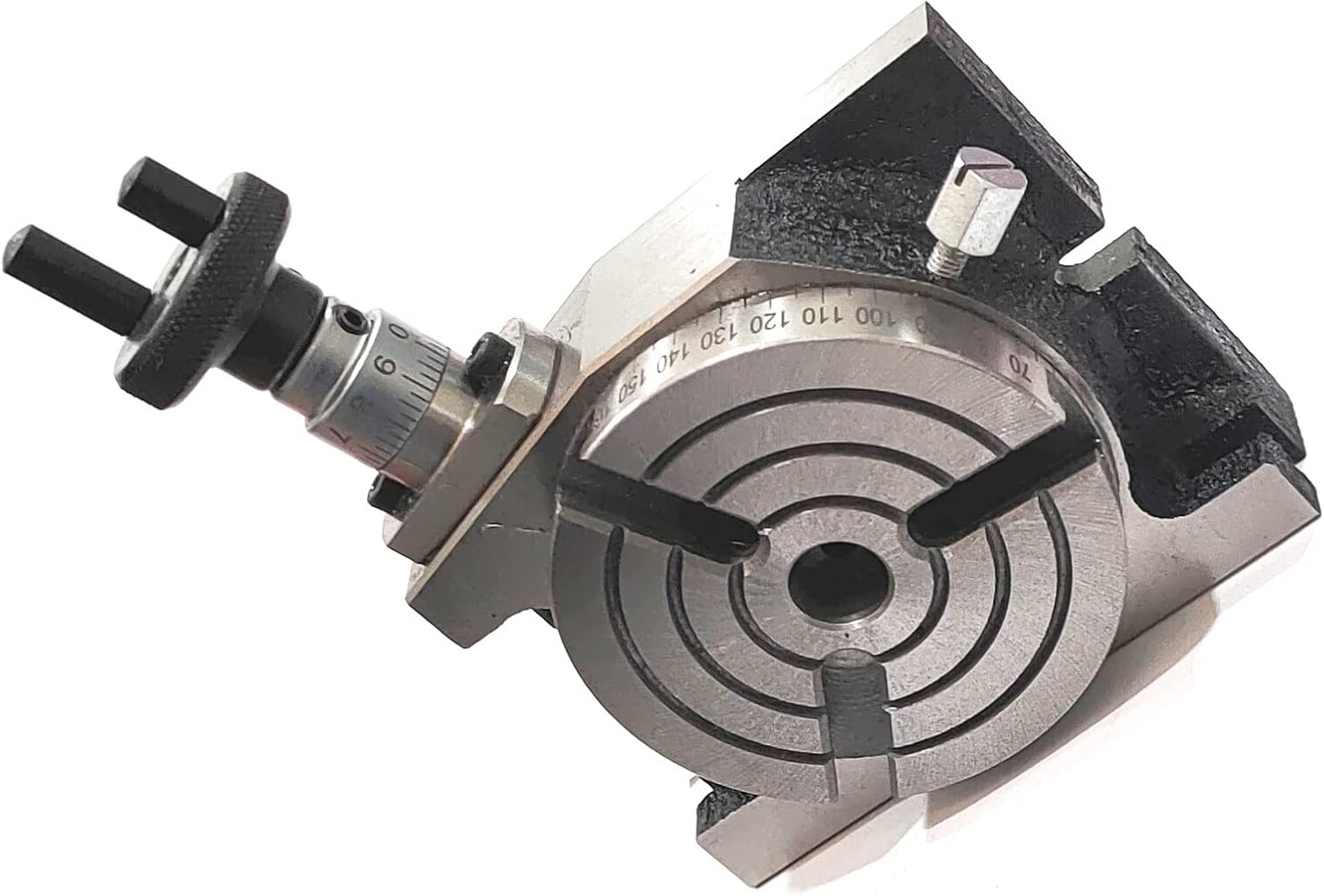

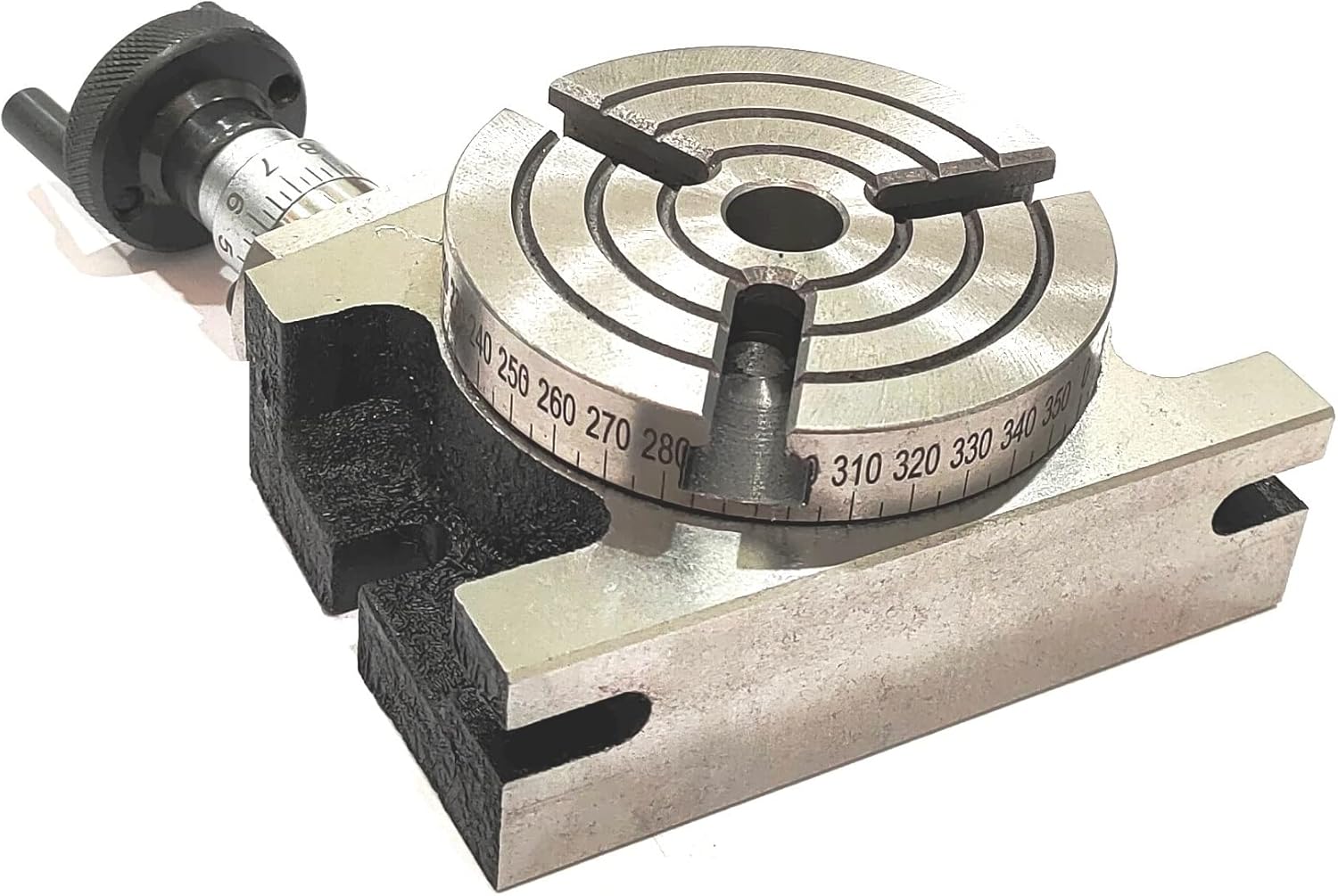

Rotary Table (3" Regular 3 Slots (80 mm))

Quality Low Profile Small Rotary Table diameter 80 mm (3"Inches ), Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Horizontal Center Height when lay flat : 44 mm. Center Height in vertical position is 45 mm approx. Can be mounted both in Horizontal & vertical position. Hand wheel is graduated in divisions of 10 min & can be set to zero. Base Dimensions: 110 x 85 mm II 2 x U slots for clamping: 8 mm Rotary table are basically a milling machine operation of cutting around a fixed interval. It is mainly used to cut gear teeth accurately and equal spacing of the teeth of the gear. Also used for milling gears, splines, squares, cutting of flutes in reamers, drills and milling cutters, racks, grinders, etc. We also offer various accessories like Chucks, Back plates, Clamp kits, Collet Adaptors and Tailstock to suit these rotary table functioning. Pls check our other listings if you need anything from this category.

• Quality Low Profile Small Rotary Table diameter 80 mm (3"Inches ), Table is graduated 360 Degrees.
• Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees.
• Horizontal Center Height when lay flat : 44 mm. Center Height in vertical position is 45 mm approx. Can be mounted both in Horizontal & vertical position.
• Hand wheel is graduated in divisions of 10 min & can be set to zero. Base Dimensions: 110 x 85 mm II 2 x U slots for clamping: 8 mm
• It is mainly used to cut gear teeth accurately and equal spacing of the teeth of the gear. Also used for milling gears, splines, squares, cutting of flutes in reamers, drills and milling cutters, racks, grinders, etc.
• We also offer various accessories like Chucks, Back plates, Clamp kits, Collet Adaptors and Tailstock to suit these rotary table functioning. Pls check our other listings if you need anything from this category.
