ST182 Digital Clamp Meter AC Current Multimeter DC/AC Voltage Ammeter Voltages Tester Amp Hz Capacitance NCV Ohm Test

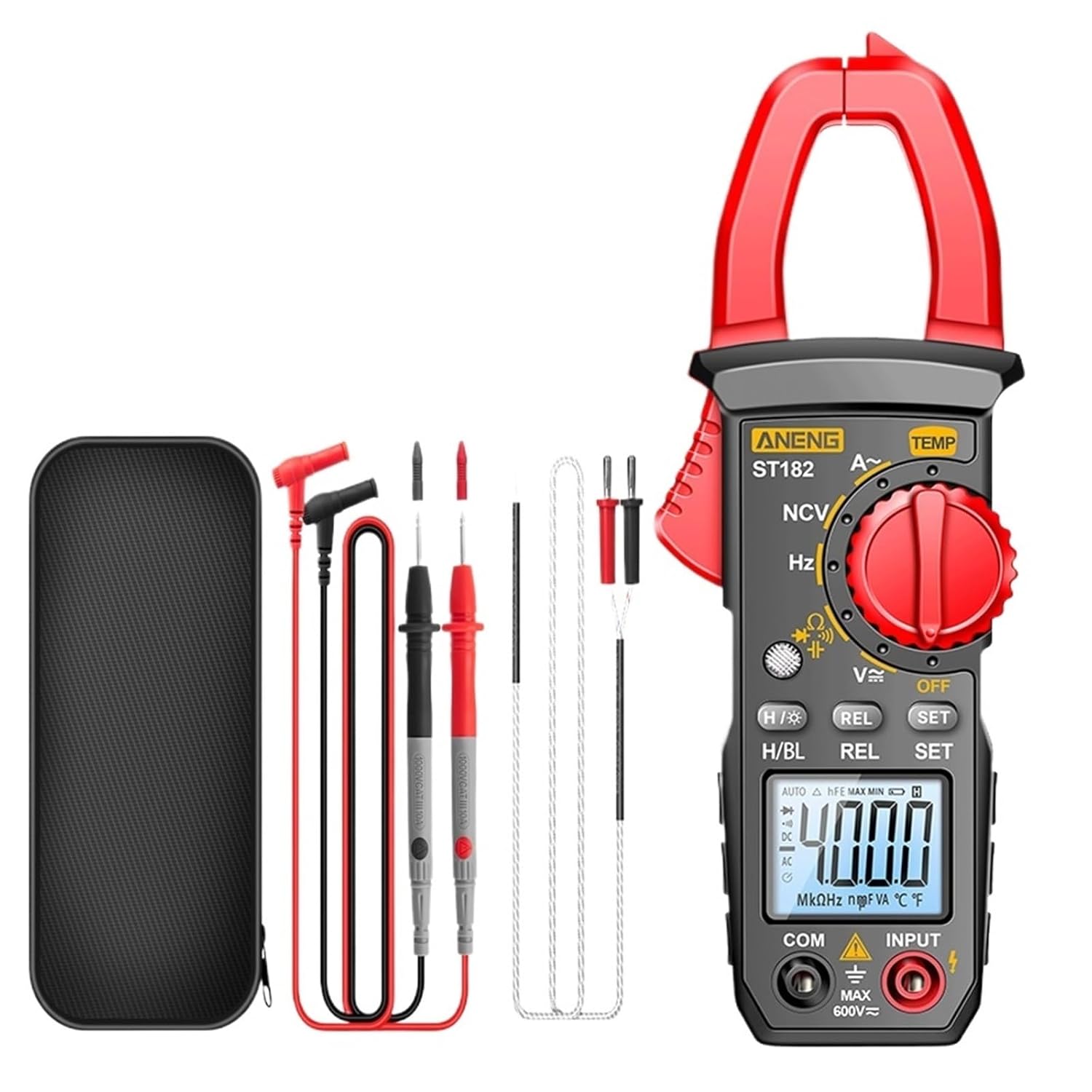

MultimetersST182 Digital Clamp Meter AC Current MultimeterFeatures:This instrument performs AC/DC voltage, AC Current, Resistance, Audible Continuity, Diode, Temperature measurements and Non-Contact ACV Detect (NCV) as well as Capacitance, Hz etc. It is an auto ranging DMM with AC current clamp meter function.Specifications:ModelST182RangeAccuracyAC Voltage4V/40V/400V/600V± (1.5% + 3) Voltage400MV± (1.5% + 5)4V/40V/400V/600V± (1.0% + 3)Resistance400/4k/40k/400k/4M± (1.2% + 3)40M± (1.5% + 5)AC Current40A/400A± (2.5% + 3)Frequency10Hz~400kHz± (1.0% + 5)400kHz~4MHz± (2.0% + 5)Capacitance1nF~4uF± (2.5% + 10)4uF~400uF± (4.0% + 20)4mF± (5.0% + 30)Temperature0~400/32~752±(2.0%+1)400~750/752~1382±(2.5%+1)Package List:1 * ST182 Clamp Multimeter1 * Test Pen1 * Temperature line1 * User Manual1 * Packing Box==========Weight : 311gDimensions : 18 x 23 x 5 cmOperating Temperature : 0-40 temperatureMeasuring Inductance Range : 4Hz~4MHzMeasuring Capacitance Range : 4nF/40nF/400nF/4uF/40uF/400uF/4mFMeasuring Resistance Range : 400/4k/40k/400k/4M/40MMeasuring Voltage Range : :400mV/4V/40V/400V/600V AC:4V/40V/400V/600VMeasuring Current Range : 40A/400ADisplay Type : Analog and DigitalModel Number : ST182 Digital clamp meterDIY Supplies : ELECTRICALModel : st182
