Stereo Audio Level Indicator VU Meter LED Light with Adjustable Speed and Multiple Display Modes for 12V 24V Systems Featuring Signal Isolation (A)

Product description feature:1. Minimum volume, PCB size 80*14mm LED module area: 58*14mm2. With multiple functions, users can freely adjust the actual speed of each light bar and main light.3. The audio input adopts the TI signal isolation to avoid the high frequency interference caused by the MCU series connection to the audio circuit to the greatest extent.4. Lights of different colors provide current limiting resistors.important hint:1 During the sampling time, the single-chip microcomputer makes the dual-channel parallel input signal change rapidly, and the amplitudes displayed by the two light bars may be different, which is a normal situation.2. In extreme cases, very slight high frequency noise may be present. It is recommended to change the position of the signal input cable to a two-core shielded cable.3. Working voltage: 7-12V current can work above 100MA. Levels of photodamage will result if you disable or reverse the positive and negative poles for voltages higher than 12Vvisual effect:1. Display the zone+ location after the peak of the trip2. Strip display+ after the peak disappears3. Bar display+(no peak display)4. After the maximum disappears, right click to display+5. Bar display+(three lights)6. Striped subtitle display+ spike effect7. Pick+ jump lights on the right side of the bar display light up twoWorking voltage: 7V-12V 100MAColor: 7 green+ 2 orange+ 3 redLiquid level lamps have standard display modes and various automatic gain control(AGC) modesWiring Instructions: for LIN: left inputSGND: Signal input referenceRIN: right of entryPGND: Power+12V: 12V power supply positive Manufacturer Contact Information no

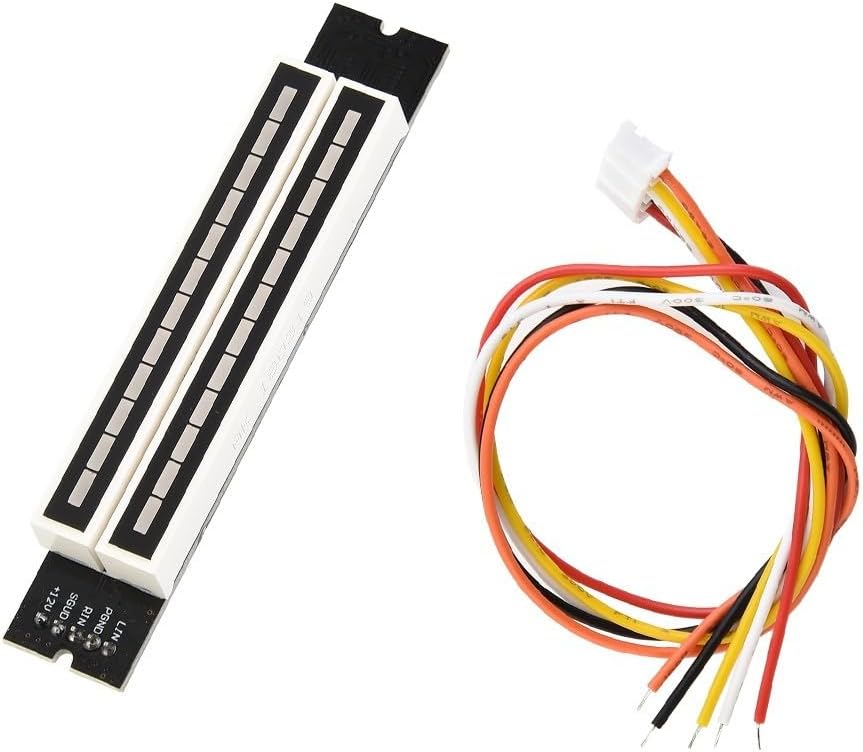

• 【Compact Design】This LED audio level indicator has a minimum volume, with a PCB size of 80x14mm and a LED module area of 58x14mm. It takes up minimal space while providing powerful performance.
• 【Customizable Functions】Users have the freedom to adjust the speed of each light bar and the main light, allowing for personalized visual effects and audio synchronization.
• 【Signal Isolation Technology】The audio input of this indicator adopts TI signal isolation, effectively eliminating high frequency interference and ensuring a clear and accurate display of audio levels.
• 【Multi-Colored Lights】With various colors available, each light bar is equipped with current limiting resistors, providing a stable and consistent illumination experience.
• 【Wide Voltage Range】Designed to work with a voltage range of 7-12V, this LED audio level indicator can handle a current above 100mA. However, it is important to avoid disabling or reversing the positive and negative poles at voltage higher than 12V to prevent damage.
